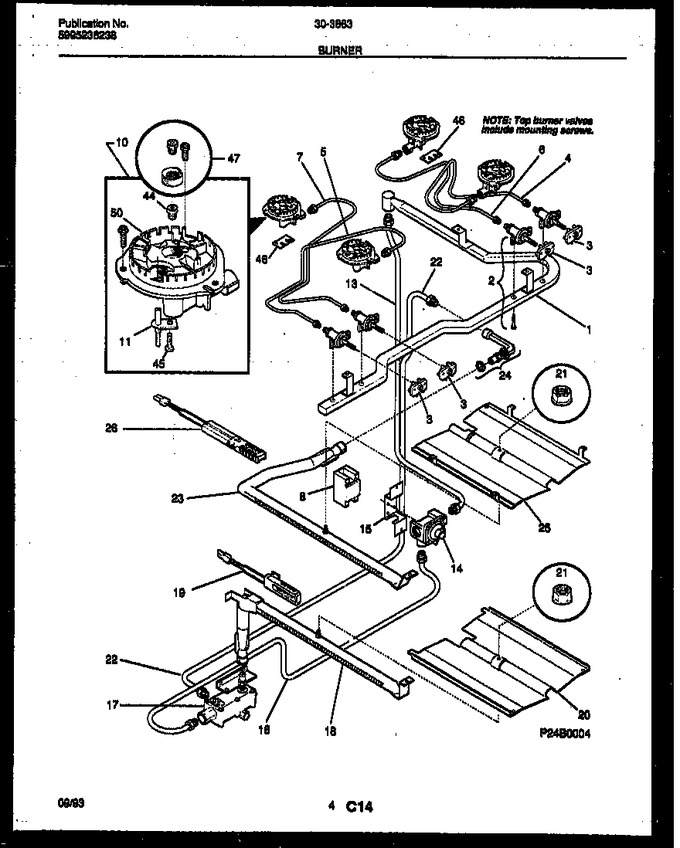

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271375		Manifold Pipe		Appelez-nous	-
2	316020400		Valve-top Burner, (4), With Mtg Screws				$ 117.44
3	316032000		Switch-igniter, (4)				$ 58.70
4	316059600		Tube-burner, Rf		Appelez-nous	-
5	316059613		Tube-burner, Lf   (Replaces: 316059601)				$ 87.16
6	316059602		Tube-burner, Rr		Appelez-nous	-
7	316059603		Tube-burner, Lr		Appelez-nous	-
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	316010600		Burner Assy-top, Sealed, (4), Includes, 11, 44, 45, & 50		Appelez-nous	-
11	316011200		Igniter - Top Burner (4), W/ Mtg Bracket			Immediately	$ 38.68
13	5303208495		Tube, Aluminum, Rgltr To Manf, With Fittings		Appelez-nous	-
14	316054801		Regulator-pressure		Appelez-nous	-
15	08067934		Bracket-regulator		Appelez-nous	-
16	5303208494		Tube-valve To Rgltr		Appelez-nous	-
17	5303208499		Valve-safety-dual			Immediately	$ 559.67
18	3131290		Burner-oven		Appelez-nous	-
19	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
20	3131284		Baffle-oven Burner				$ 155.77
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5303208493		Tube-valve To Mixer		Appelez-nous	-
23	08067935		Burner-broiler				$ 142.59
24	5303208640		Mixer Elbow		Appelez-nous	-
25	5303210379		Baffle-broiler				$ 175.88
26	5303935068		Ignitor-broiler   (Replaces: 5308067970)				$ 166.55
44	5303210090		Orifice-top Burner, (4)				$ 54.18
45	316011100		Screw-igniter Mtg, Self-tapping, M3 X 5.8, (4)				$ 3.41
46	5303269491		Plate-burner Tube		Appelez-nous	-
47	5303286386		Lp-conversion Kit				$ 143.29
50	316010700		Burner-top, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
