01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Ice & Water Dispenser


05 - Unit Compartment & System

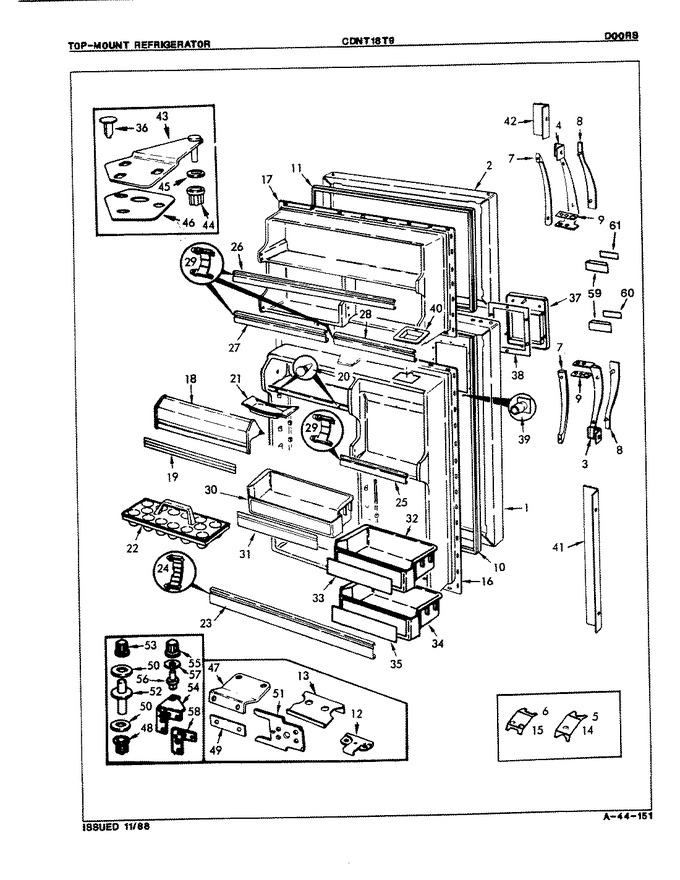

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60032-74-AM		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	60033-41-HW		Outer Panel		Appelez-nous	-
2	60033-41-AM		Outer Panel		Appelez-nous	-
2	420051-900		Washer		Appelez-nous	-
2	60033-41-WW		Outer Panel		Appelez-nous	-
3	9986-122		Screw		Appelez-nous	-
3	66255-2		Door Handle		Appelez-nous	-
4	66255-1		Door Handle		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
7	60688-2		Insert		Appelez-nous	-
8	60687-3		Insert		Appelez-nous	-
8	9986-112		Screw		Appelez-nous	-
9	60456-1		Shim		Appelez-nous	-
10	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
11	66199-5		Gasket, Frz. Door		Appelez-nous	-
12	9986-108		Screw		Appelez-nous	-
12	60419-6		Door Stop		Appelez-nous	-
13	60030-1		Door Stop		Appelez-nous	-
14	56209-3		Clip, Stop Screw		Appelez-nous	-
15	56209-3		Clip, Stop Screw		Appelez-nous	-
16	65939-8		Liner, Door		Appelez-nous	-
16	65275-5		Screw		Appelez-nous	-
17	65940-8		Liner, Door		Appelez-nous	-
18	60406-43		Door, Dairy		Appelez-nous	-
19	68128-16		Insert		Appelez-nous	-
20	28272-6		Bumper, Door		Appelez-nous	-
21	29936-2		Tray, Butter		Appelez-nous	-
22	60066-8		Tray, Egg		Appelez-nous	-
23	WP61003045		Trim, Door Shelf   (Replaces: 65151-288)				$ 129.55
24	65246-1		Retainer				$ 5.04
25	WP61003045		Trim, Door Shelf   (Replaces: 65151-297)				$ 129.55
26	WP61003045		Trim, Door Shelf   (Replaces: 65151-286)				$ 129.55
27	59258-93		Trim		Appelez-nous	-
28	59258-94		Trim		Appelez-nous	-
29	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
30	60037-51		Pick-off Shelf		Appelez-nous	-
31	68130-44		Trim		Appelez-nous	-
32	60037-36		Shelf, Pick-off		Appelez-nous	-
33	68130-45		Trim		Appelez-nous	-
34	60037-52		Pick-off Shelf		Appelez-nous	-
35	68130-43		Insert		Appelez-nous	-
36	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
37	60482-39		Escutcheon		Appelez-nous	-
38	63057-1		Seal, Escutcheon		Appelez-nous	-
39	65211-2		Retainer, Escutcheon		Appelez-nous	-
40	66775-6		Collar		Appelez-nous	-
40	402038-1		Screw		Appelez-nous	-
41	60453-13		Handle Ext		Appelez-nous	-
42	9986-122		Screw		Appelez-nous	-
42	60453-14		Handle Ext		Appelez-nous	-
43	53709-18		Door Hinge, Upper		Appelez-nous	-
43	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
44	66036-1		Bushing,top/center Hinge		Appelez-nous	-
45	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
46	65031-1		Shim, Upper Hinge		Appelez-nous	-
47	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
47	60031-2		Door Hinge, Center		Appelez-nous	-
48	60036-1		Bracket		Appelez-nous	-
49	60034-1		Spacer, Center Hinge		Appelez-nous	-
50	52185-14		Trim, Handle Extension (frzr)		Appelez-nous	-
51	60622-1		Tapping Plate		Appelez-nous	-
52	60035-4		Pin, Center Hinge		Appelez-nous	-
53	66036-1		Bushing,top/center Hinge		Appelez-nous	-
54	403062-5		Screw		Appelez-nous	-
54	60630-3		Hinge		Appelez-nous	-
55	66037-1		Hinge Bushing		Appelez-nous	-
56	65418-1		Pin		Appelez-nous	-
57	54233-4		Spacer				$ 7.70
58	65003-1		Cover, Upper Hinge		Appelez-nous	-
58	60626-1		Shim, Lower Hinge		Appelez-nous	-
59	60686-1		Bezel		Appelez-nous	-
60	65340-1		Insert		Appelez-nous	-
61	65340-5		Insert		Appelez-nous	-
