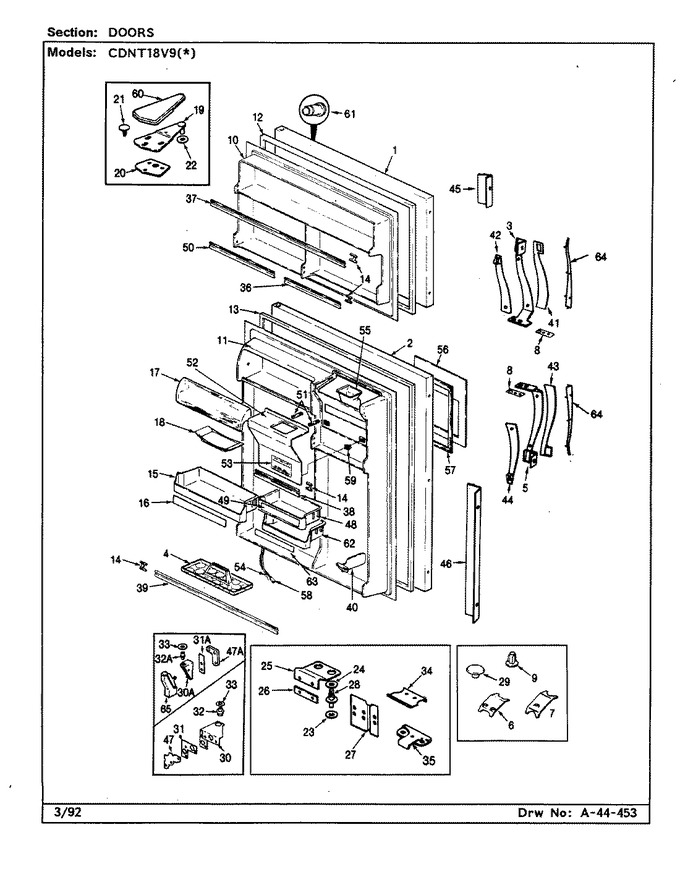

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Ice & Water Dispenser


05 - Ice Maker & Bin


06 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68474-19-AM		Panel, Outer (alm)		Appelez-nous	-
2	68477-2-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	66255-1		Door Handle		Appelez-nous	-
4	60066-9		Tray, Egg		Appelez-nous	-
5	66255-2		Door Handle		Appelez-nous	-
6	65275-57		Screw		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
7	56209-3		Clip, Stop Screw		Appelez-nous	-
8	68776-1		Shim Handle----na		Appelez-nous	-
9	55782-6		Plug Button (almond)		Appelez-nous	-
10	65940-5		Liner, Door		Appelez-nous	-
11	68678-4		Liner		Appelez-nous	-
11	65275-5		Screw		Appelez-nous	-
12	66199-5		Gasket, Frz. Door		Appelez-nous	-
13	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
15	60037-36		Shelf, Pick-off		Appelez-nous	-
16	68130-45		Trim		Appelez-nous	-
17	66184-479		Door, Dairy		Appelez-nous	-
18	29936-2		Tray, Butter		Appelez-nous	-
19	53709-20		Hinge, Upper		Appelez-nous	-
19	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	66920-3		Plug Button		Appelez-nous	-
22	54233-1		Washer				$ 7.71
23	54233-2		Washer		Appelez-nous	-
24	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
25	68811-2		Hinge, Center		Appelez-nous	-
25	65275-55		Screw		Appelez-nous	-
26	68812-1		Shim, Center Hinge		Appelez-nous	-
27	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
28	67322-1		Pin, Center Hinge		Appelez-nous	-
29	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
30	403100-1		Screw		Appelez-nous	-
30	67714-3		Hinge, Lower		Appelez-nous	-
31	60626-1		Shim, Lower Hinge		Appelez-nous	-
32	68789-1		Hinge Pin		Appelez-nous	-
33	67483-3		Washer, Door Spacer			Immediately	$ 45.86
34	60030-1		Door Stop		Appelez-nous	-
35	9986-108		Screw		Appelez-nous	-
35	60419-11		Door Stop, Refrig		Appelez-nous	-
36	WP61003045		Trim, Door Shelf   (Replaces: 65151-339)				$ 129.55
37	WP61003045		Trim, Door Shelf   (Replaces: 65151-286)				$ 129.55
38	WP61003045		Trim, Door Shelf   (Replaces: 65151-297)				$ 129.55
39	WP61003045		Trim, Door Shelf   (Replaces: 65151-335)				$ 129.55
40	66645-2		Organizer		Appelez-nous	-
41	68036-4		Insert (alm)		Appelez-nous	-
42	60580-6		Insert		Appelez-nous	-
43	68036-4		Insert (alm)		Appelez-nous	-
44	65275-53		Screw		Appelez-nous	-
45	60453-22		Handle Trim Extension		Appelez-nous	-
46	60453-21		Handle Trim Extension		Appelez-nous	-
47	403100-1		Screw		Appelez-nous	-
47	65790-3		Tapping Plate		Appelez-nous	-
48	60037-51		Pick-off Shelf		Appelez-nous	-
49	68130-43		Insert		Appelez-nous	-
50	WP61003045		Trim, Door Shelf   (Replaces: 65151-338)				$ 129.55
51	52077-26		Seal		Appelez-nous	-
52	68779-1		Insulation, Fountain Perimeter		Appelez-nous	-
52	68700-1		Panel, Access		Appelez-nous	-
52	68781-1		Insulation, Fountain Back		Appelez-nous	-
53	68785-4		Insert, Food Storage		Appelez-nous	-
54	WPW10426709		Tubing   (Replaces: 67187-11)				$ 126.83
55	68571-1		Chute, Ice		Appelez-nous	-
56	68594-22		Escutcheon		Appelez-nous	-
57	95121-1		Tape, Escutcheon		Appelez-nous	-
58	68536-2		Wire Harness, Door To Main		Appelez-nous	-
59	65184-3		Latch		Appelez-nous	-
60	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
61	29356-1		Retainer, Nameplate		Appelez-nous	-
62	60037-52		Pick-off Shelf		Appelez-nous	-
63	68130-44		Trim		Appelez-nous	-
64	68048-5		Insert, Vinyl		Appelez-nous	-
