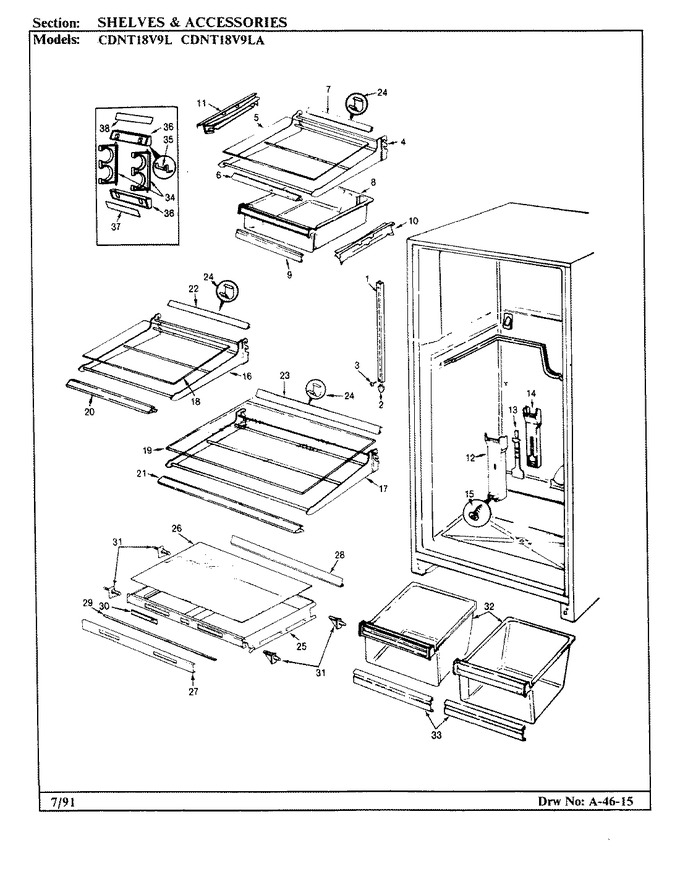

CDNT18V9LA (BOM: BC49A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	60096-8	Rail, Shelf Support (rt)	Appelez-nous	-
1	60096-9	Rail, Shelf Support (center)	Appelez-nous	-
1	60096-7	Rail, Shelf Support (lt)	Appelez-nous	-
2	60340-1	End Cap, Center Rail	Appelez-nous	-
3	400037-28	Screw	Appelez-nous	-
4	60570-13	Frame, Shelf	Appelez-nous	-
5	66604-30	Shelf	Appelez-nous	-
6	60524-6	Trim, Meat Shelf (front)	Appelez-nous	-
7	65276-4	Trim, Meat Shelf (rear)	Appelez-nous	-
8	66523-9	Pan, Meat	Appelez-nous	-
9	66230-13	Trim	Appelez-nous	-
10	66814-1	Rail, Meat Pan (rt)	Appelez-nous	-
11	66813-1	Rail, Meat Pan (lt)	Appelez-nous	-
12	60094-21	Tunnel	Appelez-nous	-
13	60093-2	Damper, Air Tunnel	Appelez-nous	-
14	60092-2	Insulation	Appelez-nous	-
15	W11233072	Screw (Replaces: 400015-31)		Immediately	$ 12.62
16	60570-13	Frame, Shelf	Appelez-nous	-
17	60570-25	Frame, Shelf	Appelez-nous	-
18	66604-23	Glass, Cantilever Split Shelf	Appelez-nous	-
19	66604-22	Glass, Cantilever Shelf	Appelez-nous	-
20	60524-6	Trim, Meat Shelf (front)	Appelez-nous	-
21	60524-28	Trim,shelf (full Front)	Appelez-nous	-
22	65276-4	Trim, Meat Shelf (rear)	Appelez-nous	-
23	65276-21	Trim, Shelf (full Rear)	Appelez-nous	-
24	66333-1	Clip, Shelf Trim	Appelez-nous	-
25	68735-1	Shelf, Crisper	Appelez-nous	-
26	68743-13	Shelf, Crisper	Appelez-nous	-
27	68744-4	Trim	Appelez-nous	-
28	68798-1	Trim, Crisper Shelf (rear)	Appelez-nous	-
29	68797-1	Seal	Appelez-nous	-
30	68742-2	Slide, Control	Appelez-nous	-
31	68836-1	Stud, Crisper Support	Appelez-nous	-
32	68222-423	Pan, Crisper	Appelez-nous	-
33	66230-14	Trim	Appelez-nous	-
34	56519-4	Rack, Wine	Appelez-nous	-
35	58057-1	Spring, Wine Rack	Appelez-nous	-
36	65689-1	Support, Wine Rack	Appelez-nous	-
37	68821-5	Insert	Appelez-nous	-
38	68821-4	Insert	Appelez-nous	-
