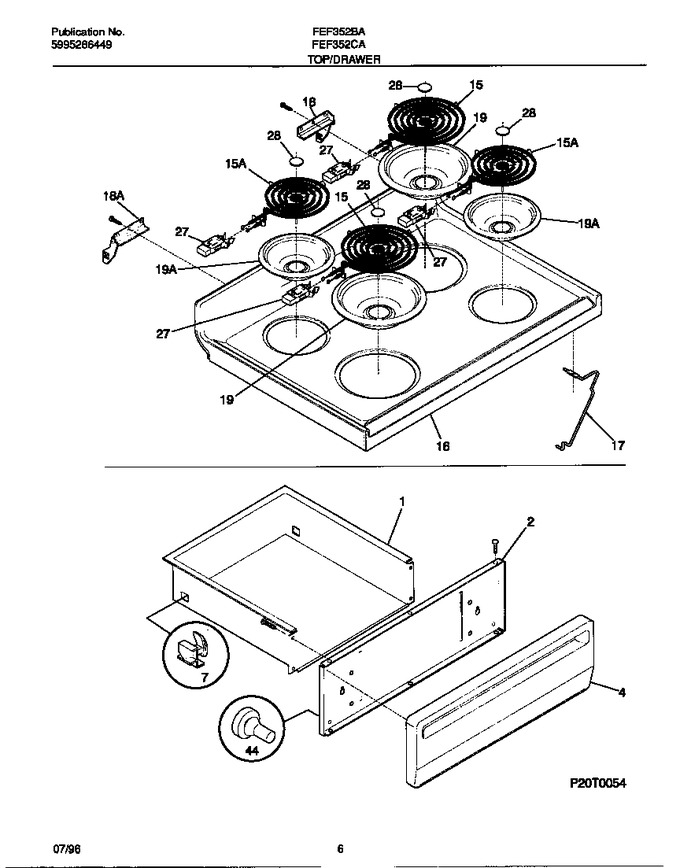

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
4	316021109		Screw-drawer Pnl (not Illustrated)   (Replaces: 316021112)			Immediately	$ 27.50
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316048600		Element-surface, Large/8 Inch		Appelez-nous	-
15	316048500		Element-surface, Small/6 Inch		Appelez-nous	-
16	316202388		Main Top, White   (Replaces: 316020907)				$ 407.24
17	316057601		Rod-maintop Support				$ 64.49
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316048408		Pan-burner, Gray, Small, (2)		Appelez-nous	-
19	316048411		Pan-burner, Gray, Large, (2)		Appelez-nous	-
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
44	3131903		Bumper				$ 55.36
*02605	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*02606	316001725		Harness-wiring, Surface Element		Appelez-nous	-
*02607	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*02608	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*02609	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
28A	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
28B	5303296595		Medallion, 3/4`` Dia, Surface Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
