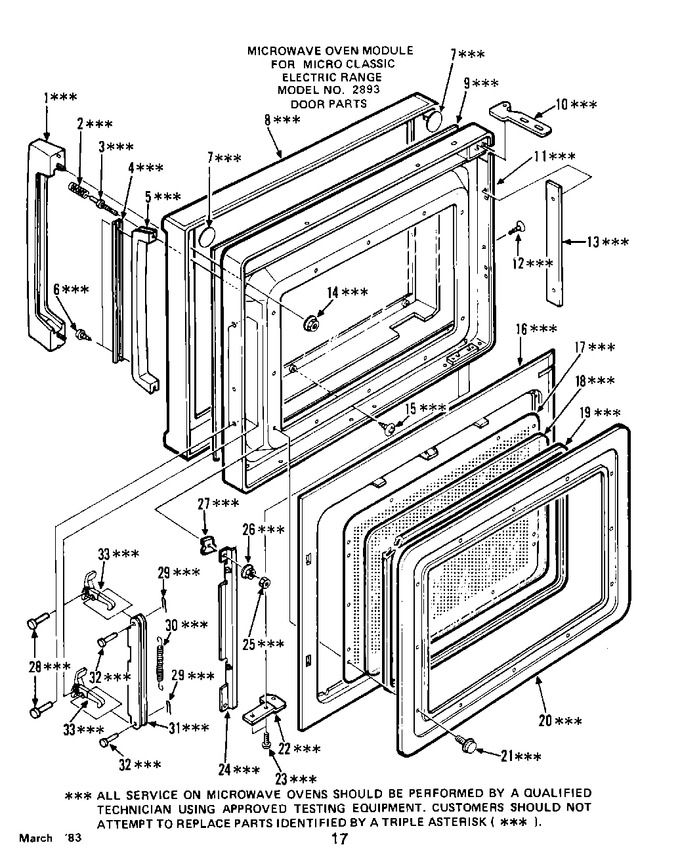

2893^0A | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	780541	Door Handle With Plastic Strip Xxx	Appelez-nous	-
2	780542	Spring, Door Handle	Appelez-nous	-
3	780543	Shaft, Door Handle	Appelez-nous	-
4	780544	Metal Reinforcement	Appelez-nous	-
5	780545	Handle Grip	Appelez-nous	-
6	780467	Screw, Bind Hd. Tapping, 3 X 8 Mm, Z1-1 Xxx	Appelez-nous	-
7	780484	Cushion, Glass Barrier	Appelez-nous	-
8	780546	Door Sash With Metal Trimming Xxx	Appelez-nous	-
9	780547	Glass Barrier	Appelez-nous	-
10	780109	Upper Hinge, Door	Appelez-nous	-
11	780548	Door Main Frame	Appelez-nous	-
12	780127	Screw, Flat Hd. Tapping, 3 X 8 Mm, Zk-1	Appelez-nous	-
13	780111	Ferrite Rubber	Appelez-nous	-
14	780086	Nut, Hex Hd. With Washer, 4 Mm, Z1-1	Appelez-nous	-
15	780482	Screw, Truss Hd. Tapping, 3 X 6 Mm, Z1-2	Appelez-nous	-
16	780112	Choke Dielectric With Ferrite Rubber	Appelez-nous	-
17	780113	Perforated Screen	Appelez-nous	-
18	780114	Glass Panel	Appelez-nous	-
19	780115	Door Seal	Appelez-nous	-
20	780116	Retaining Frame, Perforated Screen	Appelez-nous	-
21	W11729437	Sink Screw, Oval Hd. Machine With Washer, 4 X 6 Mm, U (Replaces: 780117)		Immediately	$ 20.98
22	780549	Lower Hinge Door	Appelez-nous	-
23	780119	Screw, Truss Hd. Machine, 4 X 10 Mm Z1	Appelez-nous	-
24	780550	Latch Lever	Appelez-nous	-
25	780225	Nut, Hex, Hd. 3 Mm, Z1	Appelez-nous	-
26	780070	Nut, Hex Hd. With Washer, 3 Mm, Z1	Appelez-nous	-
27	780551	Rubber Packing, Handle Shaft	Appelez-nous	-
28	W11023674	Shaft, Door Latchxxx (Replaces: 780122)			$ 46.33
29	780123	Stopper, Latch Lever Shaft	Appelez-nous	-
30	780124	Spring, Door Latch	Appelez-nous	-
31	780125	Latch Leverxxx	Appelez-nous	-
32	W11672206	Shaft, Latch Lever (Replaces: 780120)	Appelez-nous	-
33	780121	Door Latch	Appelez-nous	-
