02 - Backguard
03 - Body Parts

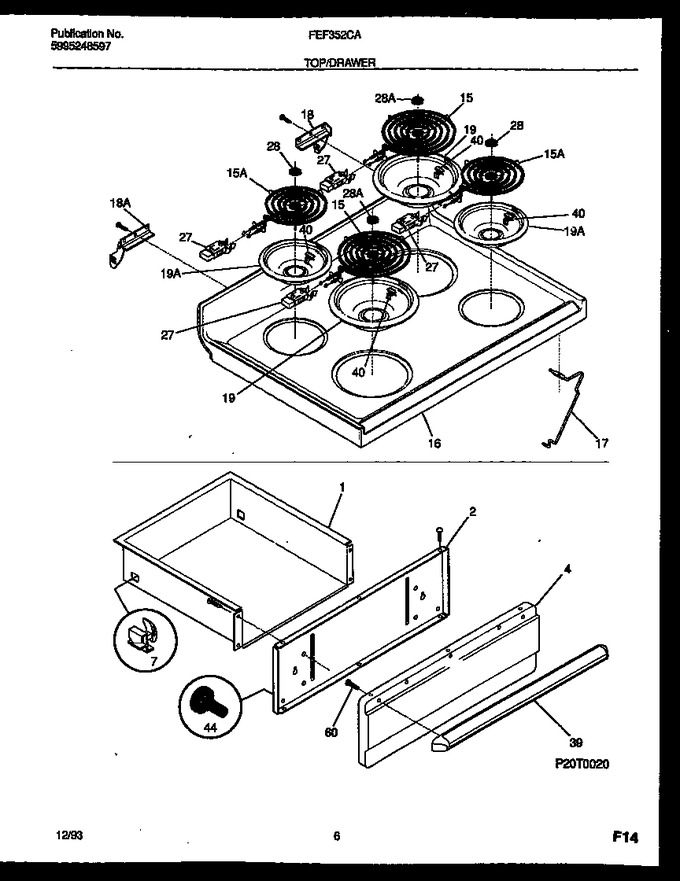

04 - Cooktop And Drawer Parts
05 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 316056206 | Panel,drawer ,almond |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 15 | 316048600 | Element-surface, Large/8 Inch |
|
- | |||||
| 16 | 5303288821 | Main Top, Almond |
|
- | |||||
| 17 | 316057601 | Rod-maintop Support |
|
$ 64.49 | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 19 | 316048403 | Pan-surface Element, Large/8 Inch |
|
- | |||||
| 27 | 5303935058 | Terminal Block Kit,surface Element (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 28 | 5303017715 | Medallion, 1 1/2`` Dia, Surface Element |
|
$ 64.46 | |||||
| 39 | 316026102 | Handle-drawer, Almond |
|
- | |||||
| 40 | 316058600 | Clip-surface Element, (4) |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 60 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| 15A | 316048500 | Element-surface, Small/6 Inch |
|
- | |||||
| 18A | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 18B | 5303288567 | Screw, 8-18 X 3/8, (4) (non-illustrated) |
|
- | |||||
| 19A | 316048405 | Pan-surface Element, Small/6 Inch |
|
- | |||||
| 28A | 5303296595 | Medallion, 3/4`` Dia, Surface Element |
|
- | |||||
| 4A | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated) |
|
- |
