SELECT A DIAGRAM
01 - Control Panel
02 - Detergent Cup
03 - Door & Access Panel
04 - Frame
05 - Pump & Motor
06 - Racks
07 - Top
08 - Tub (inner)
SELECT A DIAGRAM
New Model Search:

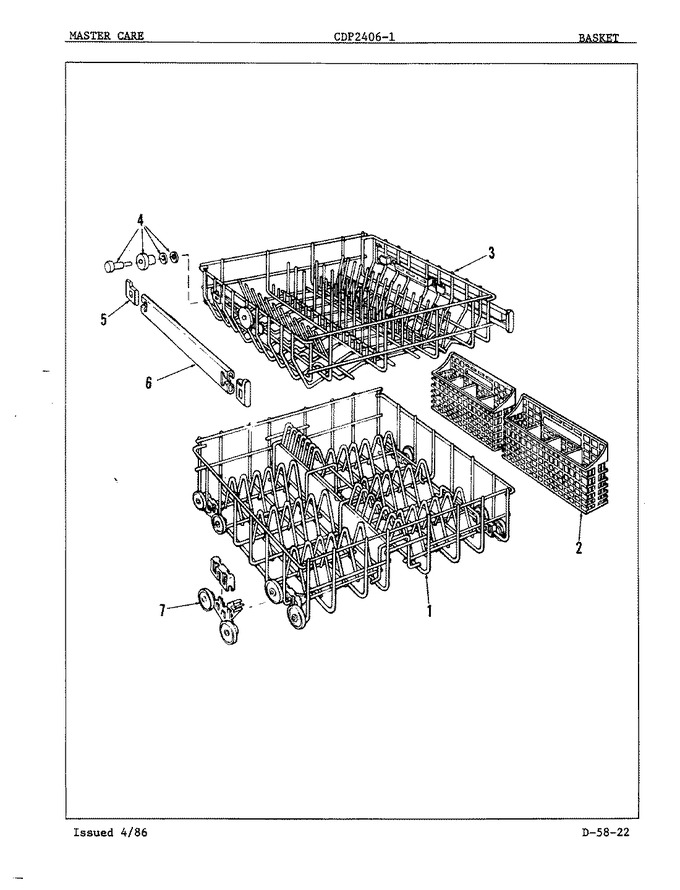

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 808189 | Lower Rack |
|
- | |||||
| 2 | 807512 | Silvrwr Basket |
|
- | |||||
| 3 | 807902 | Upper Rack |
|
- | |||||
| 4 | 807957 | Wheel Asm |
|
- | |||||
| 5 | 807853 | End Cap |
|
- | |||||
| 6 | 807854 | Rack Slide |
|
- | |||||
| 7 | 807008 | Wheel Asm |
|
- |
