01 - Control Panel
02 - Detergent Cup
03 - Door & Access Panel
04 - Frame
05 - Pump & Motor
06 - Racks
07 - Top Assembly
08 - Tub (inner)
SELECT A DIAGRAM
New Model Search:

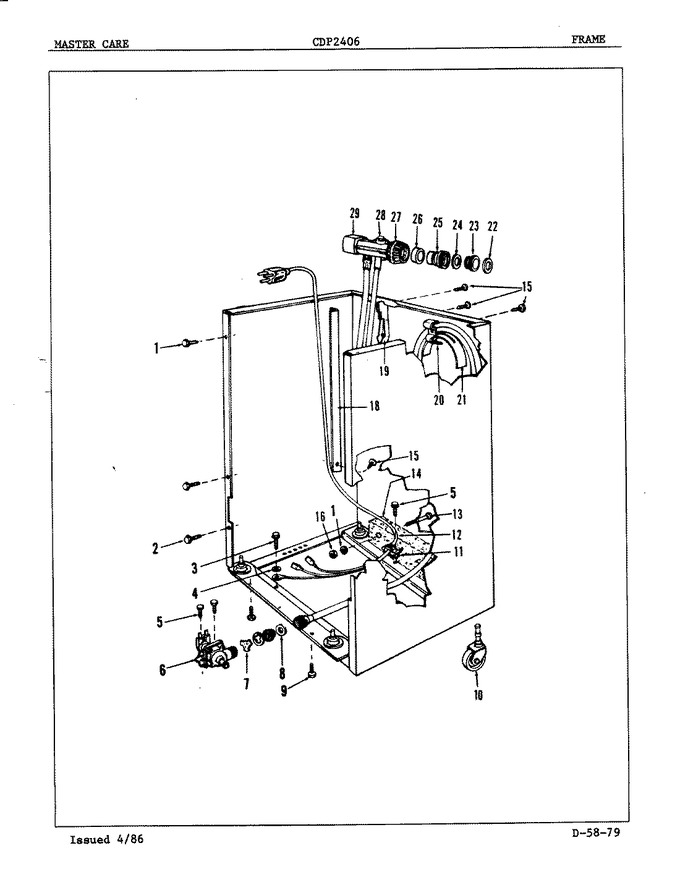

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806539 | Screw |
|
- | |||||
| 2 | 806663 | Screw |
|
- | |||||
| 3 | 807951 | Screw |
|
- | |||||
| 4 | 807373 | Washer |
|
- | |||||
| 5 | 804518 | Screw |
|
- | |||||
| 6 | WD15X93 | Inlet Valve (Replaces: 804982) |
|
$ 64.56 | |||||
| 7 | 807607 | Washer |
|
- | |||||
| 8 | 800787 | Hose Washer |
|
- | |||||
| 9 | WP90767 | Screw (Replaces: 808658) |
|
Immediately | $ 7.04 | ||||
| 10 | 806171 | Caster |
|
- | |||||
| 10 | 804518 | Screw |
|
- | |||||
| 11 | 804426 | Clamp |
|
- | |||||
| 12 | 807883 | Plug Button |
|
- | |||||
| 12 | 805046 | Power Cord |
|
- | |||||
| 13 | 806812 | Screw |
|
- | |||||
| 14 | 808615 | Weight |
|
- | |||||
| 15 | 807501 | Screw |
|
- | |||||
| 16 | 808661 | Nut |
|
- | |||||
| 17 | 808613 | Washer |
|
- | |||||
| 19 | 805859 | Hose Guide |
|
- | |||||
| 20 | 806142 | Hose Clamp |
|
- | |||||
| 21 | 806143 | Hose Support |
|
- | |||||
| 22 | 803393 | Washer |
|
- | |||||
| 23 | 800782 | Adaptor |
|
- | |||||
| 24 | 803390 | Washer |
|
- | |||||
| 25 | 30168LF | Adapter (Replaces: 803391) |
|
Immediately | $ 10.94 | ||||
| 26 | WP910218 | U Packing (Replaces: 806584) |
|
Immediately | $ 9.05 | ||||
| 27 | WP285170 | Collar Kit (Replaces: 807499) |
|
Immediately | $ 64.29 | ||||
| 28 | 807498 | Relief Kit |
|
- | |||||
| 29 | DWD8C | Hose Asm (Replaces: 807496) |
|
- |
