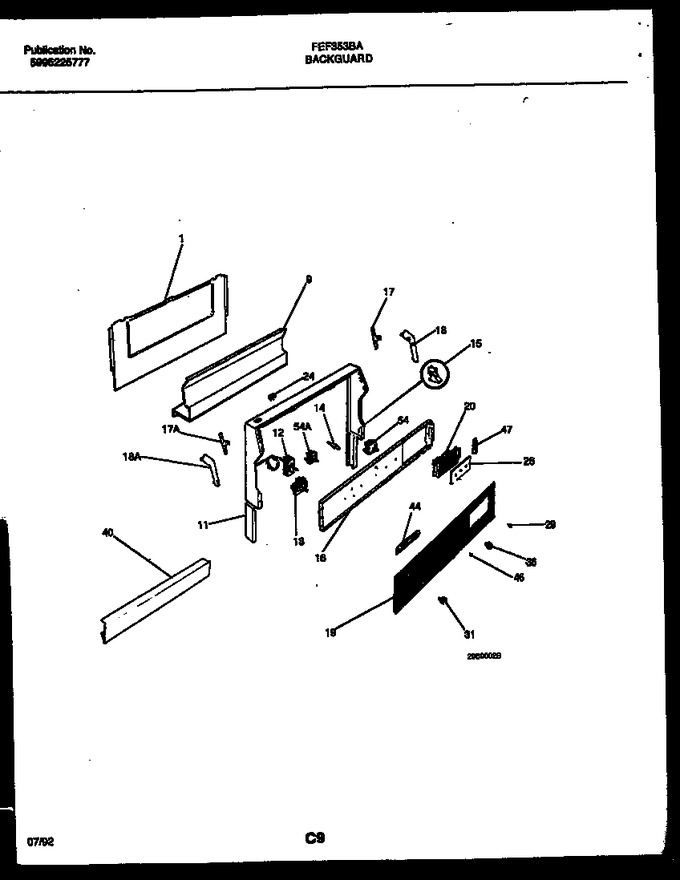

02 - Backguard


03 - Body Parts


04 - Body Parts


05 - Cooktop And Drawer Parts


06 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	5303206628		Trim-splasher, White		Appelez-nous	-
11	3204764		Trim-wrapper		Appelez-nous	-
12	3204581		Thermostat-oven		Appelez-nous	-
13	3201732		Switch-selector, 6 Pos		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	5303131237		Support, Backguard		Appelez-nous	-
16	5303212662		Plate, Instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	3204747		Cap-end Rh		Appelez-nous	-
19	316034521		Panel-control, Metal		Appelez-nous	-
20	3201694		Clock/timer, Radial 3 Stem		Appelez-nous	-
24	5308015487		Switch,oven Light ,rocker				$ 61.43
26	3201695		Lens-clock, Glass		Appelez-nous	-
29	5303210414		Knob, Clock		Appelez-nous	-
31	316050000		Knob, 2, Thermo/selector		Appelez-nous	-
36	316050001		Knob-control		Appelez-nous	-
40	316009238		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	5308037703		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
47	3201700		Retainer-clock Glass		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
*65572	3051224		Retainer-lens		Appelez-nous	-
*65573	5308003107		Spacer, Control Panel		Appelez-nous	-
*65573	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*65573	5303272555		Clip-backguard		Appelez-nous	-
14A	3201728		Light/lamp, Indicator, Red, Lock, Lock (non-illustrated)		Appelez-nous	-
14B	3201726		Light/lamp, Indicator, Clear, 250 V, Clean (non-illustrated)		Appelez-nous	-
14C	3201727		Light/lamp, Indicator, 250v, Oven (non-illustrated)		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	3204746		Cap-end Lh		Appelez-nous	-
54A	5303285143		Switch, 8`` Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
