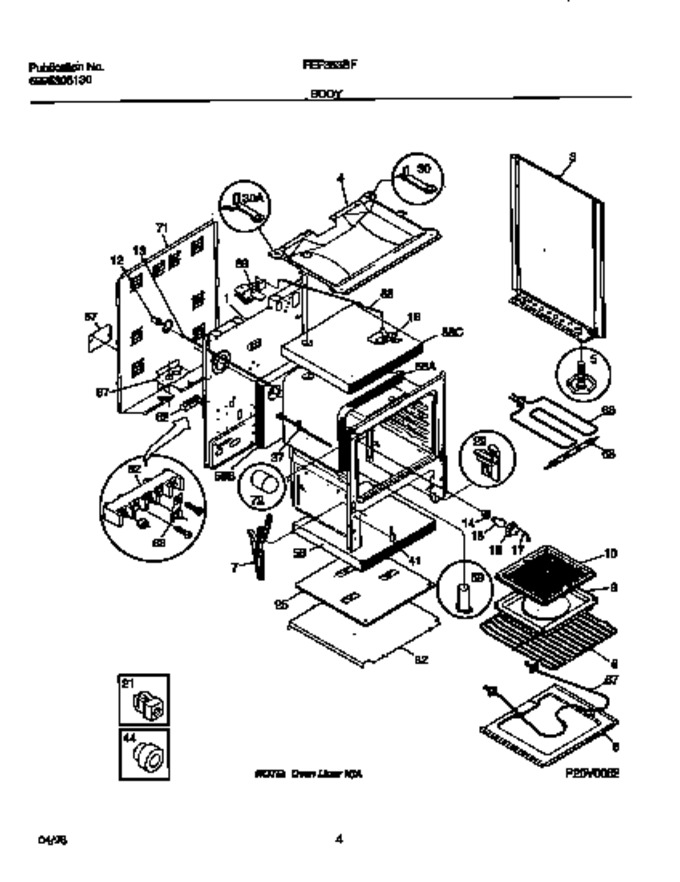

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080801		Back-main		Appelez-nous	-
3	316081028		Panel-bodyside, White, Rh		Appelez-nous	-
3	316081031		Panel-bodyside,almond ,lh		Appelez-nous	-
4	5303271756		Burner Box		Appelez-nous	-
5	5303203397		Screw-leveling				$ 14.49
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
12	316027701		Switch-oven Light		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	316036300		Latch-door		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
25	3200848		Shield,heat ,lower		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	5303283574		Bracket-hinge, Main Top Rh		Appelez-nous	-
30	5303283575		Bracket-hinge, Main Top, Lh		Appelez-nous	-
37	5304497424		Probe-oven Temp   (Replaces: 316111200)			Immediately	$ 38.32
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
57	316081101		Cover-access		Appelez-nous	-
58	316054200		Insulation, Oven Back		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
59	316073600		Tube-oven Vent		Appelez-nous	-
62	5303935061		Terminal Block		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Element-broil				$ 202.71
67	316075103		Element-bake,lower Oven   (Replaces: 316075102)			Immediately	$ 42.36
68	316075300		Support-element		Appelez-nous	-
71	316015805		Shield-rear Wall		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
89	316028101		Motor-latch/lock		Appelez-nous	-
*42563	316081030		Panel-bodyside, Almond, Rh		Appelez-nous	-
*42564	316081029		Panel-bodyside,white ,lh		Appelez-nous	-
*42565	3934058		Anti-tip Kit				$ 98.75
*42566	316116000		Screw,anti-tip ,(4)   (Replaces: 316078600)				$ 12.89
*42567	5303288460		Nut,t-type,leveling Screw				$ 27.14
*42568	3203550		Plug-button			Immediately	$ 15.22
*42569	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*42570	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*42571	5303051099		Nut, Hex, 10-32		Appelez-nous	-
58A	316047707		Insulation,oven Wrapper				$ 150.92
58B	316047708		Insulation, Oven Wrapper				$ 222.56

    View Diagram in Separate Window       Print Part List
