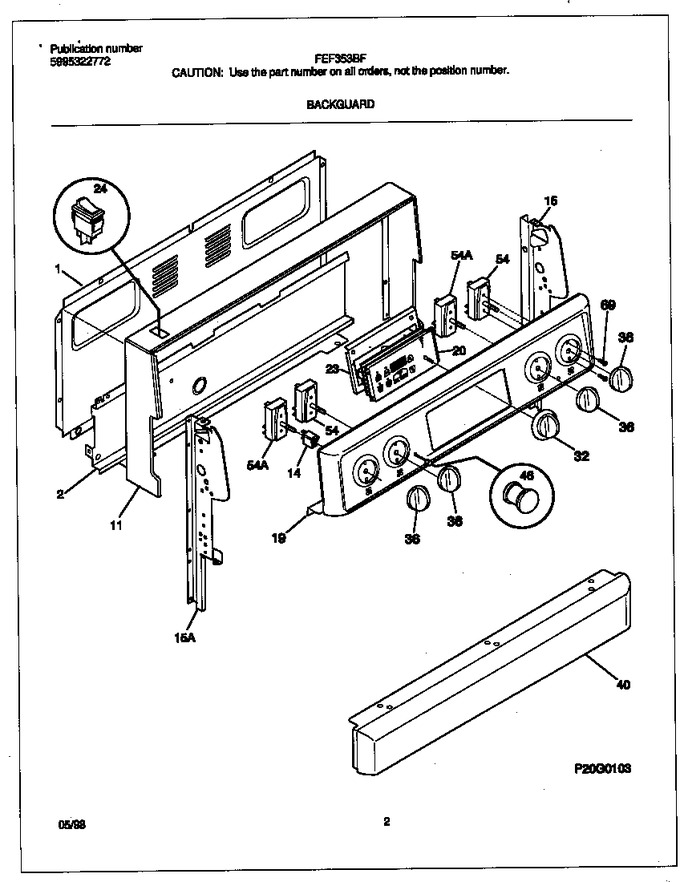

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316024494		Panel-control, Metal		Appelez-nous	-
20	316101103		Clock/timer, Trimline, Dial 3				$ 299.30
23	316100300		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	316101400		Knob-thermostat		Appelez-nous	-
36	316025108		Knob-control, Infinite Sw, Black		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
*84920	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*84921	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*84922	316071902		Gasket-edge		Appelez-nous	-
*84923	316085600		Insulator-shield Thermostt		Appelez-nous	-
*84924	316112500		Template, Anti-tip Bracket				$ 3.55
*84925	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*84926	316101505		Overlay-clock		Appelez-nous	-
*84927	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
11A	316061851		Trim-wrapper,textured ,black		Appelez-nous	-
11B	316083719		Trim-wrapper,textured ,black		Appelez-nous	-
