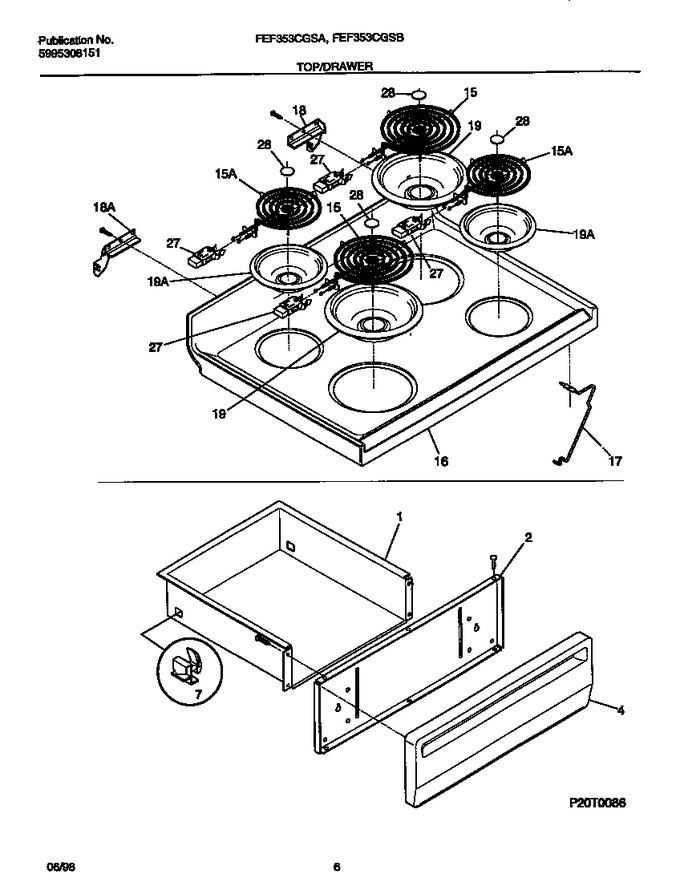

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
15	318372211		Element-surface,small-6``   (Replaces: 08067762)			Immediately	$ 45.14
15	316442301		Element-surface,large-8``   (Replaces: 5303012223)			Immediately	$ 44.39
16	316202388		Main Top, White   (Replaces: 316020907)				$ 407.24
17	316057601		Rod-maintop Support				$ 64.49
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	L304430992		Pan-surface Element, Small/6 Inch   (Replaces: 5303935057)				$ 9.59
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303935054)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
*20493	316021109		Screw-drawer Pnl   (Replaces: 316021112)			Immediately	$ 27.50
*20494	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*20495	316001725		Harness-wiring, Surface Element		Appelez-nous	-
*20496	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*20497	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*20498	316058600		Clip-surface Element, (4)		Appelez-nous	-
*20499	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
*20500	316089600		Spacer-drawer, (2)		Appelez-nous	-
*20501	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*20502	5308014215		Screw,6-20 X 5/16 ,(4)				$ 2.28
28A	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
28B	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
