SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

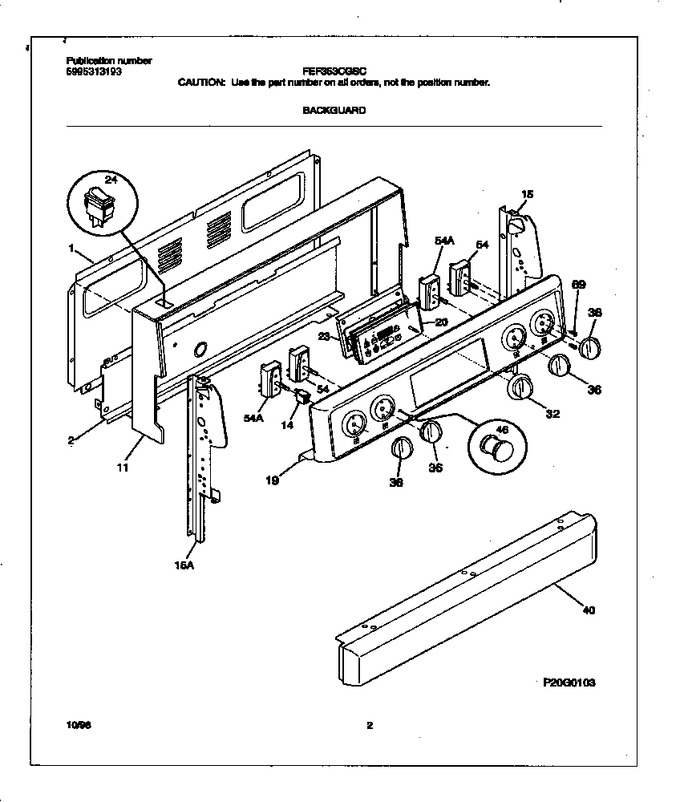

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316083721		Trim-wrapper,, Textured , White		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316024495		Panel-control, Metal		Appelez-nous	-
20	316101103		Clock/timer, Trimline, Dial 3				$ 299.30
23	316100300		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
32	316101401		Knob,thermostat ,white		Appelez-nous	-
36	316025106		Knob-control, Infinite Sw, White				$ 57.64
40	316025808		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*43240	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*43241	316071902		Gasket-edge		Appelez-nous	-
*43242	316085600		Insulator-shield Thermostt		Appelez-nous	-
*43243	316112500		Template, Anti-tip Bracket				$ 3.55
*43244	316101522		Overlay-tl El W/dial Fr Wht		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
