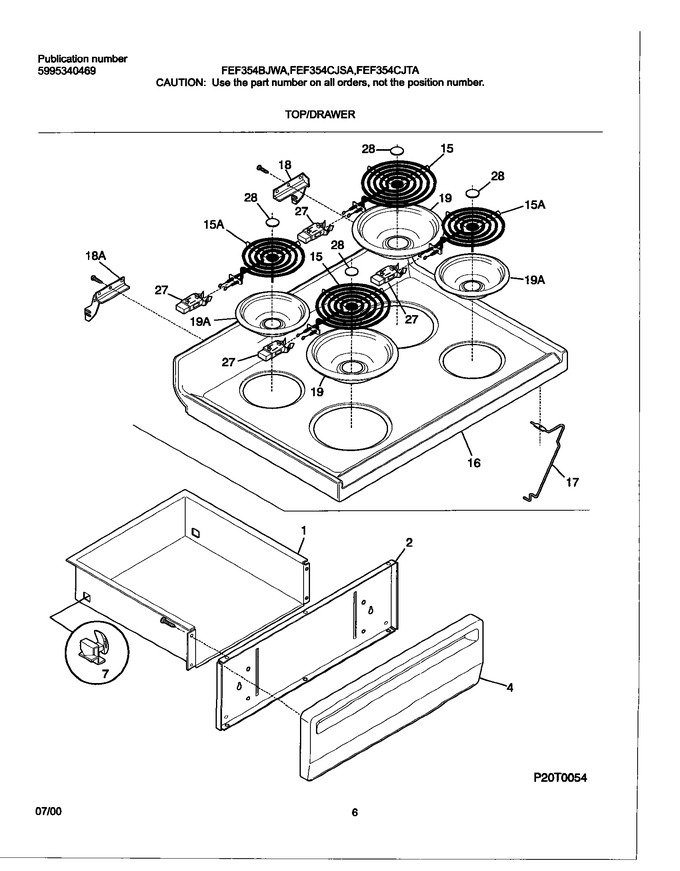

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316202388		Main Top, White   (Replaces: 316020907)				$ 407.24
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303935054)			Immediately	$ 9.85
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
18A	5303273063		Hinge-main Top (lh)				$ 48.41
19A	L304430992		Pan-surface Element, Small/6 Inch   (Replaces: 5303935057)				$ 9.59
F15	316442301		Element-surface,large-8``   (Replaces: 5303012223)			Immediately	$ 44.39
F15A	318372211		Element-surface,small-6``   (Replaces: 08067762)			Immediately	$ 45.14
F27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	316021109		Screw,semi Gim ,8-18 X 1/2 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316001725		Wiring Harness,surface Element		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifol   (Replaces: 316021108)				$ 10.02
NI	5308014215		Screw				$ 2.28
