SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer

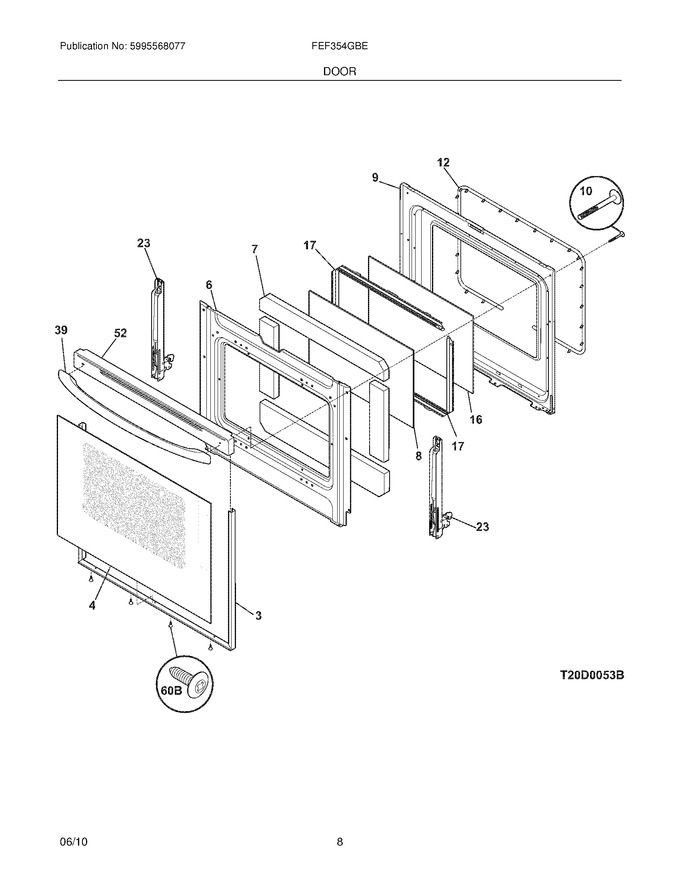

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door,3 Sided ,black ,w/tape   (Replaces: 5303935317)			Immediately	$ 58.12
4	316406404		Glass,oven Door ,black ,outer   (Replaces: 316406401)				$ 222.20
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation,oven Door				$ 76.55
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117502)				$ 116.95
9	316423701		Liner,oven Door				$ 143.50
10	316001009		Screw,waf Hd Sq `10-24 X 1.88 ,(2) ,handle Mtg				$ 15.17
12	316405000		Seal,oven Door			Immediately	$ 179.17
16	5304503232		Glass,oven Door ,inner   (Replaces: 316117504)				$ 116.95
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316559901)			Immediately	$ 25.02
23	316537303		Hinge,oven Door ,red ,(2)		Appelez-nous	-
39	5304529996		Handle,oven Door ,black   (Replaces: 316456900)				$ 156.11
52	316575501		Cap,door Trim ,black				$ 110.73
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46

    View Diagram in Separate Window       Print Part List
