SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Pump & Motor


04 - Rinse Aid & Soap Dispenser


05 - Track & Rack Assembly


06 - Tub


07 - Wiring Information

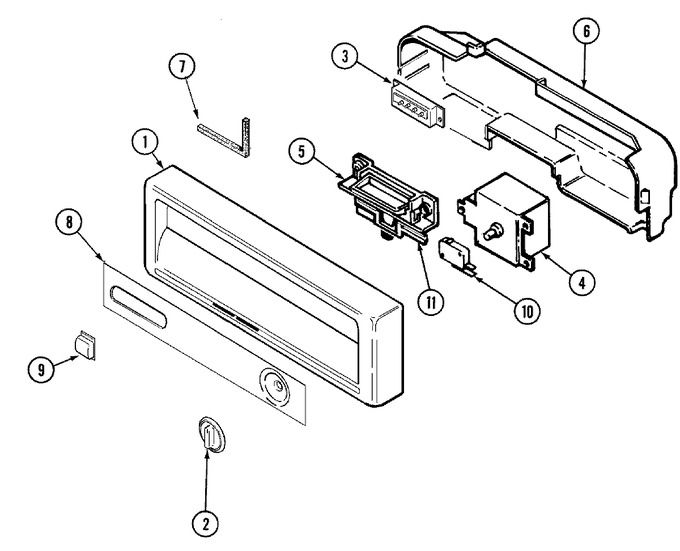

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001567		Panel, Control (wht)	10	Appelez-nous	-
1	99002559		Felt, Control Panel (side)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99001895		Knob, Timer (wht)	10	Appelez-nous	-
3	99002391		Switch, Control (4-button)	10	Appelez-nous	-
4	99002430		Timer	10			$ 172.36
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
5	WP99002240		Holder, Switch   (Replaces: 99002240)	10			$ 63.31
6	99001588		Barrier, Control Panel	10	Appelez-nous	-
7	Y913116		Liner, Vent	10	Appelez-nous	-
7	Y913177		Seal, Vent Outlet	10	Appelez-nous	-
8	99002447		Insert, Facia (wht)	10	Appelez-nous	-
9	99001581		Button, Control Switch (wht)	10	Appelez-nous	-
10	WP99002207		Switch, Door   (Replaces: 99002207)	10			$ 30.87
11	W10834433		Handle, Latch (wht)   (Replaces: 99002085)	10		Immediately	$ 108.37
NI	99002428		Harness, Wire	10	Appelez-nous	-
NI	99002496		Harness, Wire	27	Appelez-nous	-
NI	99002394		Manual, Use & Care (tri)	10	Appelez-nous	-
NI	16010623		Manual, Service Crosley	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
