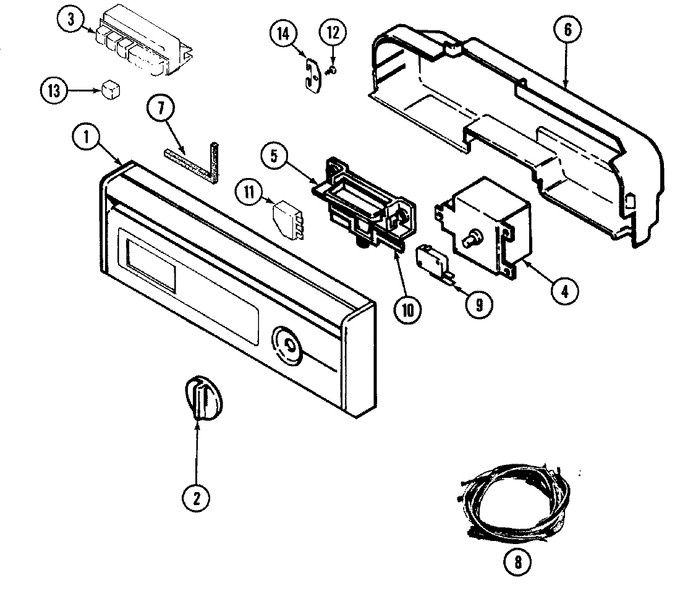

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A2		Immediately	$ 6.90
1	99001378		Panel, Control (wht)	28	Appelez-nous	-
1	99001016		Panel, Control (wht)	A2	Appelez-nous	-
2	903514		Knob, Timer	A2	Appelez-nous	-
3	913180		Shield, Control	A2	Appelez-nous	-
3	903518		Switch (5-button)	A2	Appelez-nous	-
4	903502CP		Timer   (Replaces: 903502)	A2	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A2		Immediately	$ 6.90
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A2		Immediately	$ 6.90
5	Y912664		Holder, Door Switch	A2			$ 38.66
6	Y912937		Barrier, Control Panel	A2	Appelez-nous	-
7	Y913177		Seal, Vent Outlet	A2	Appelez-nous	-
7	Y913116		Liner, Vent	A2	Appelez-nous	-
8	99001043		Wire Harness, Main	A6	Appelez-nous	-
8	315471		Retainer, Wire	A6	Appelez-nous	-
8	99001172		Wire Harness, Main	B6	Appelez-nous	-
8	903505		Harness, Wire	A2	Appelez-nous	-
9	99002254		Switch, Door   (Replaces: 903086)	A2			$ 116.79
10	12001118		Kit, Latch Handle (wht)	A9	Appelez-nous	-
10	Y912945		Handle, Latch	A2	Appelez-nous	-
11	903651		Extender, Cycle	A2	Appelez-nous	-
12	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A2		Immediately	$ 6.90
13	913145		Button (wht)	A2	Appelez-nous	-
14	913139		Bracket, Switch	A2	Appelez-nous	-
NI	913232		Manual, Use & Care (frch)	B6	Appelez-nous	-
NI	Y913008		Manual, Use & Care	A2	Appelez-nous	-
