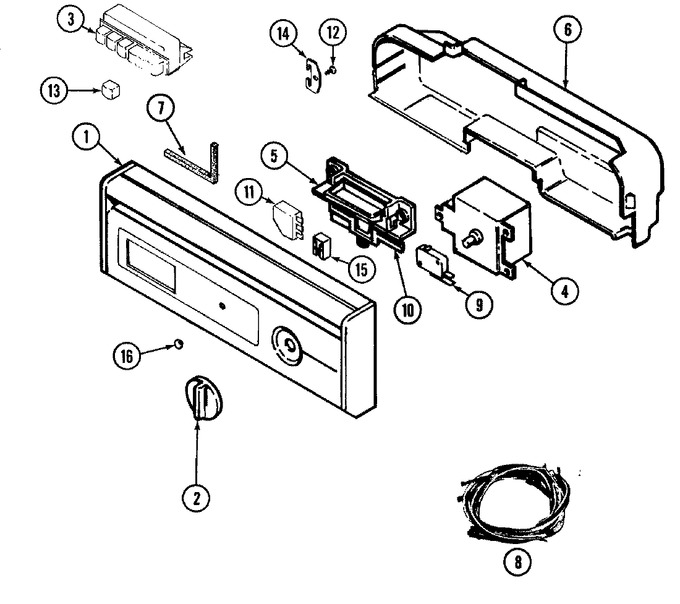

01 - Control Panel


02 - Door


03 - Pump & Motor


04 - Rinse Aid & Soap Dispenser


05 - Track & Rack Assembly


06 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
1	99001382		Panel, Control (blk)	28	Appelez-nous	-
1	903908		Panel, Control	A0	Appelez-nous	-
2	903496		Knob, Timer	A0	Appelez-nous	-
3	913180		Shield, Control	A0	Appelez-nous	-
3	903519		Switch (8-button)	A0	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
4	903506		Timer	A0	Appelez-nous	-
5	Y912664		Holder, Door Switch	A0			$ 38.66
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
6	Y912937		Barrier, Control Panel	A0	Appelez-nous	-
7	Y913116		Liner, Vent	A0	Appelez-nous	-
7	Y913177		Seal, Vent Outlet	A0	Appelez-nous	-
8	315471		Retainer, Wire	A6	Appelez-nous	-
8	903508		Harness, Wire	A0	Appelez-nous	-
8	99001044		Wire Harness, Main	A6	Appelez-nous	-
8	99001173		Wire Harness, Main	B6	Appelez-nous	-
9	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
10	12001117		Kit, Latch Handle (blk)	A9	Appelez-nous	-
10	Y912939		Handle, Latch	A0	Appelez-nous	-
11	903651		Extender, Cycle	A0	Appelez-nous	-
12	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
13	913146		Button (blk)	A0	Appelez-nous	-
14	913139		Bracket, Switch	A0	Appelez-nous	-
15	903115		Lock Light	A0			$ 5.70
16	Y912696		Lens, Indicator Light	A0			$ 5.02
NI	Y913066		Manual, Use & Care	A0	Appelez-nous	-
