01 - Body
02 - Door/drawer
03 - Oven
04 - Top Assembly/control Panel
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

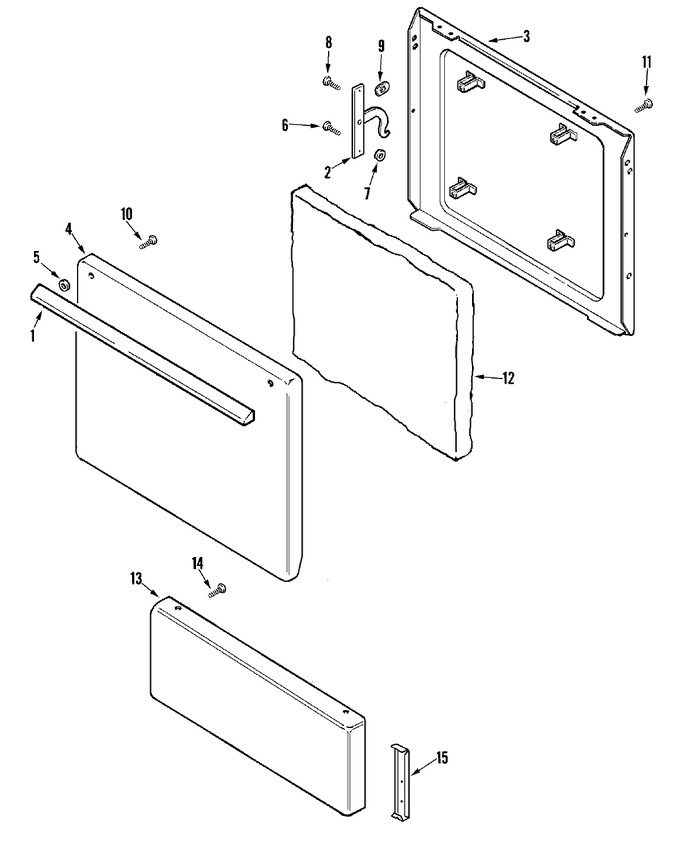

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010477 | Handle, Door (wht) | 10 |
|
- | ||||
| 2 | 3418A047-34 | Hinge, Door (rt) | 10 |
|
- | ||||
| 2 | 3418A046-34 | Hinge, Door (lt) | 10 |
|
- | ||||
| 3 | 2402W102-19 | Lining, Door | 10 |
|
- | ||||
| 4 | 2401W059-71 | Panel, Oven Door (wht) | 10 |
|
- | ||||
| 5 | 74005232 | Spacer, Door Handle | 10 |
|
- | ||||
| 6 | 74004004 | Screw, 10-24 X 7/16`` | 10 |
|
- | ||||
| 7 | W10080180 | Nut Lock (Replaces: 7103P072-60) | 10 |
|
$ 12.13 | ||||
| 9 | W10080180 | Nut (Replaces: 7103P034-60) | 10 |
|
$ 12.13 | ||||
| 10 | WP74005233 | Screw (10b X 1``) (Replaces: 74005233) | 10 |
|
$ 6.78 | ||||
| 11 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 10 |
|
Immediately | $ 6.85 | |||
| 12 | 74009878 | Insulation, (18 X 20) | 10 |
|
$ 13.56 | ||||
| 13 | 74003275 | Panel (wht) | 10 |
|
- | ||||
| 14 | WP98008544 | Screw (wht) (Replaces: 74009540) | 10 |
|
$ 11.89 | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74003277 | Bracket, Panel | 10 |
|
- |
