SELECT A DIAGRAM

01 - Cover

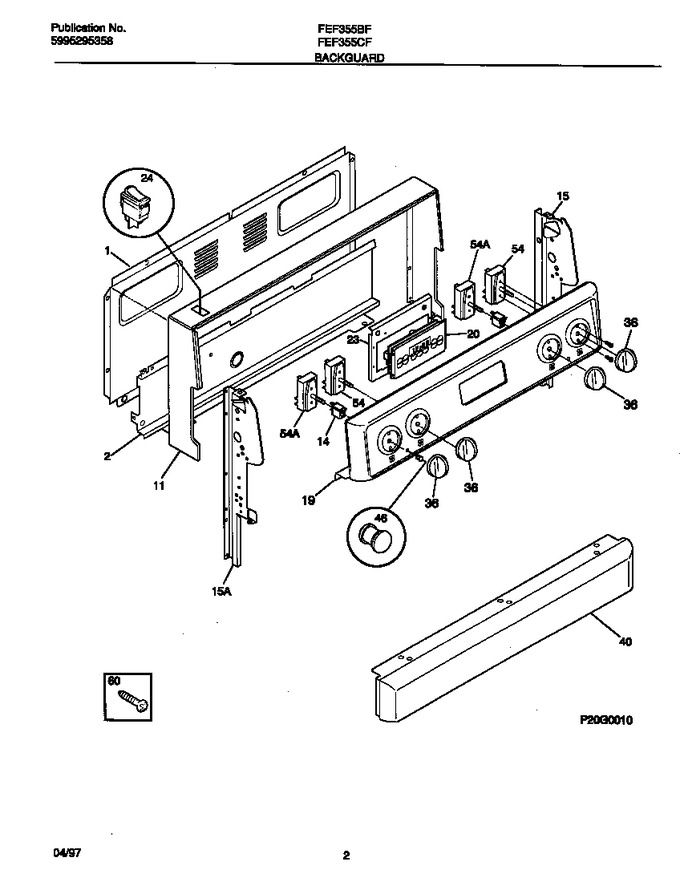

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316083700		Trim-wrapper, White		Appelez-nous	-
14	316022503		Light/lamp, Indicator, Yellow, 250 V, (2)			Immediately	$ 70.16
19	316024495		Panel-control, Metal		Appelez-nous	-
20	316101502		Overlay-clock (not Illustrated)				$ 108.15
20	316101001		Clock/timer, Electronic				$ 419.79
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
36	316025106		Knob-control, Infinite Sw, White, (4)				$ 57.64
40	316025808		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red, (2)		Appelez-nous	-
54	5303935086		Switch-6`` Element, (2)   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*16200	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*16201	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
