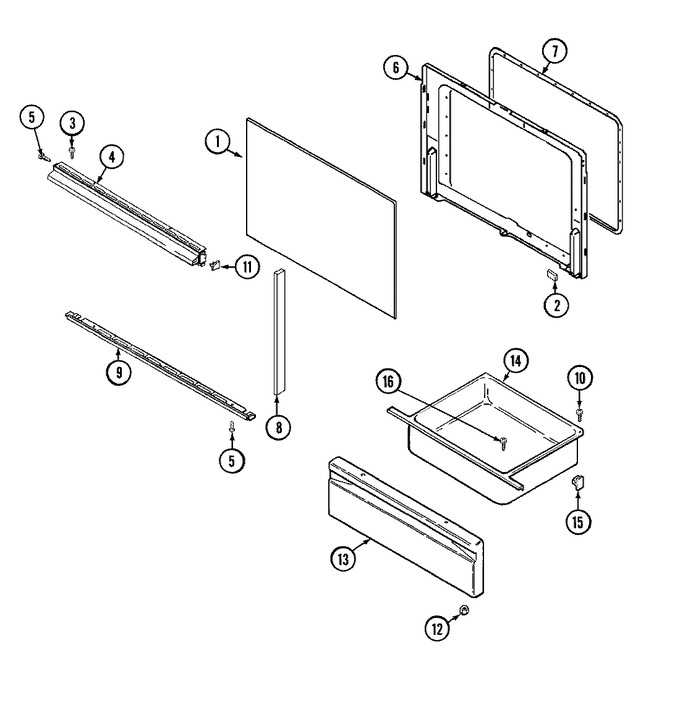

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P325-60		Glass, Door (outer-blk)	45	Appelez-nous	-
2	8010P085-60		Spacer, Rubber	45	Appelez-nous	-
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	45			$ 15.94
4	7701P144-60		Handle, Door (blk)	48	Appelez-nous	-
4	7701P103-60		Handle, Door (blk)	45	Appelez-nous	-
4	74003429		Handle, Door (blk)	53			$ 93.87
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	45		Immediately	$ 12.62
6	74002396		Lining, Door	45	Appelez-nous	-
6	74003240		Lining, Door	51	Appelez-nous	-
7	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	45		Immediately	$ 56.83
8	74002084		End Cap, Door (blk)	45	Appelez-nous	-
8	74003430		End Cap, Door (blk)	53			$ 59.35
9	74003432		Trim, Bottom (blk)	53	Appelez-nous	-
9	7744P105-60		Trim, Bottom (blk)----na	45	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	45		Immediately	$ 12.62
10	W10124350		Not Required Part Or See Note	52	Appelez-nous	-
11	74002539		End Cap, Handle (rt-blk)	45	Appelez-nous	-
11	74002540		End Cap, Handle (lt-blk)	45	Appelez-nous	-
11	W10124350		Not Required Part Or See Note	48	Appelez-nous	-
12	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	45			$ 4.00
14	3405F019-80		Drawer, Storage	45	Appelez-nous	-
14	74003618		Drawer, Storage	52	Appelez-nous	-
15	8004P026-60		Support, Drawer (rear)	45			$ 9.29
15	WP488130		Nut   (Replaces: 7103P082-60)	52			$ 6.27
15	74003566		Roller, Drawer	52	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	45		Immediately	$ 12.62
