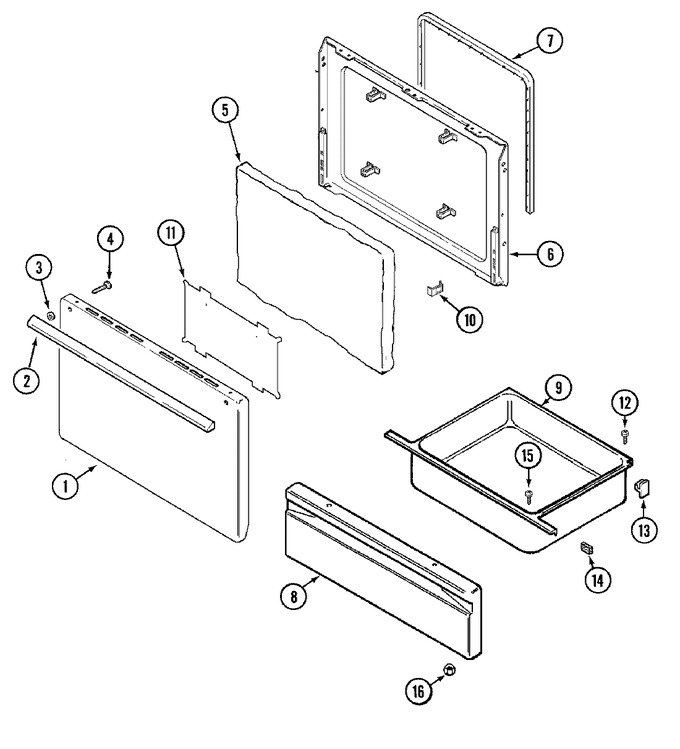

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F096-71		Panel, Door (wht)	12	Appelez-nous	-
2	7701P030-60		Handle, Door (chr)	12	Appelez-nous	-
2	WP2411F013-70		Handle, Door (chr)   (Replaces: 74001819)	17			$ 186.01
3	8010P084-60		Spacer, Handle (blk)	12	Appelez-nous	-
4	WP3387230		Screw   (Replaces: 74002483)	12		Immediately	$ 7.69
5	4804F011-60		Insulation, Door	12	Appelez-nous	-
6	74003240		Lining, Door	25	Appelez-nous	-
6	2402W201-19		Lining, Door	12	Appelez-nous	-
7	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	12		Immediately	$ 56.83
8	74003407		Panel, Drawer (wht)	27	Appelez-nous	-
8	2416F038-62		Panel, Drawer (wht)	12	Appelez-nous	-
9	71003042		Drawer, Storage	27	Appelez-nous	-
9	2404F030-51		Lining, Drawer Panel	27	Appelez-nous	-
9	3405F015-80		Drawer, Storage	12	Appelez-nous	-
10	7112P034-60		Clip, Door	12	Appelez-nous	-
11	3601F250-51		Baffle, Door	12	Appelez-nous	-
12	W10124350		Not Required Part Or See Note	27	Appelez-nous	-
12	7101P291-60		Screw	12	Appelez-nous	-
13	74003566		Roller, Drawer	27	Appelez-nous	-
13	WP488130		Nut   (Replaces: 7103P082-60)	27			$ 6.27
13	8004P026-60		Support, Drawer (rear)	12			$ 9.29
14	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	12			$ 11.95
15	WP4159193		Screw   (Replaces: 7101P115-60)	12			$ 4.29
16	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	12			$ 4.00
