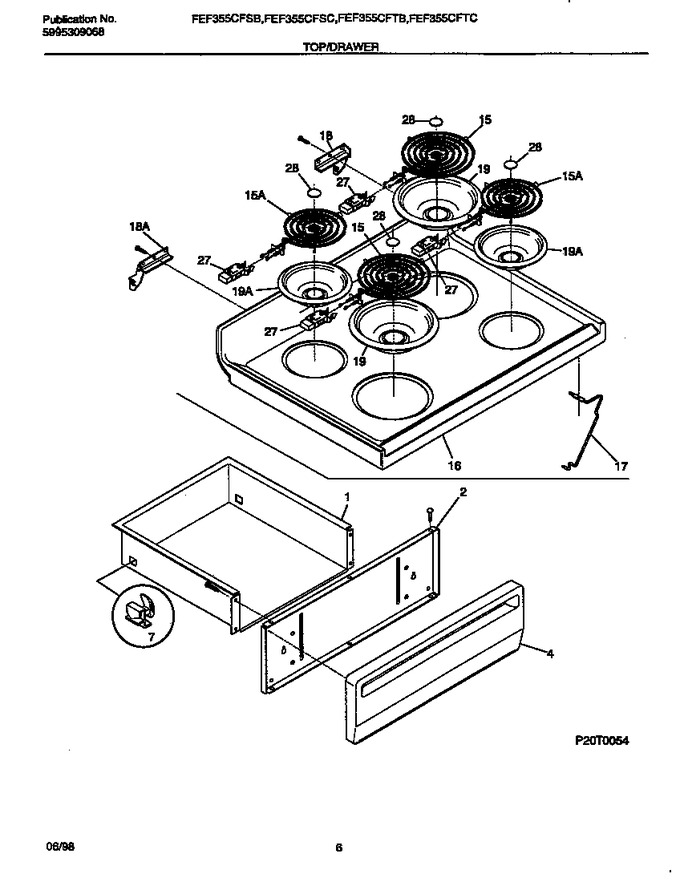

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
15	316048600		Element-surface, Large/8 Inch		Appelez-nous	-
15	316048500		Element-surface, Small/6 Inch		Appelez-nous	-
16	316020908		Main Top, Almond		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
19	316048412		Pan-surface Element,almond ,large/8 Inch,(2)		Appelez-nous	-
19	316048409		Pan-surface Element,almond ,small/6 Inch,(2)		Appelez-nous	-
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
44	3131903		Bumper				$ 55.36
*55895	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*55896	316001725		Harness-wiring, Surface Element		Appelez-nous	-
*55897	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*55898	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*55901	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*55902	316058600		Clip-surface Element, (4)		Appelez-nous	-
*55903	316089600		Spacer-drawer, (2)		Appelez-nous	-
*55904	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*55905	5308014215		Screw,6-20 X 5/16 ,(4)				$ 2.28
*55906	08067785		Screw,hex Washer Head, 8-18(ab) X 1/2		Appelez-nous	-
28A	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
28B	5303296595		Medallion, 3/4`` Dia, Surface Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
