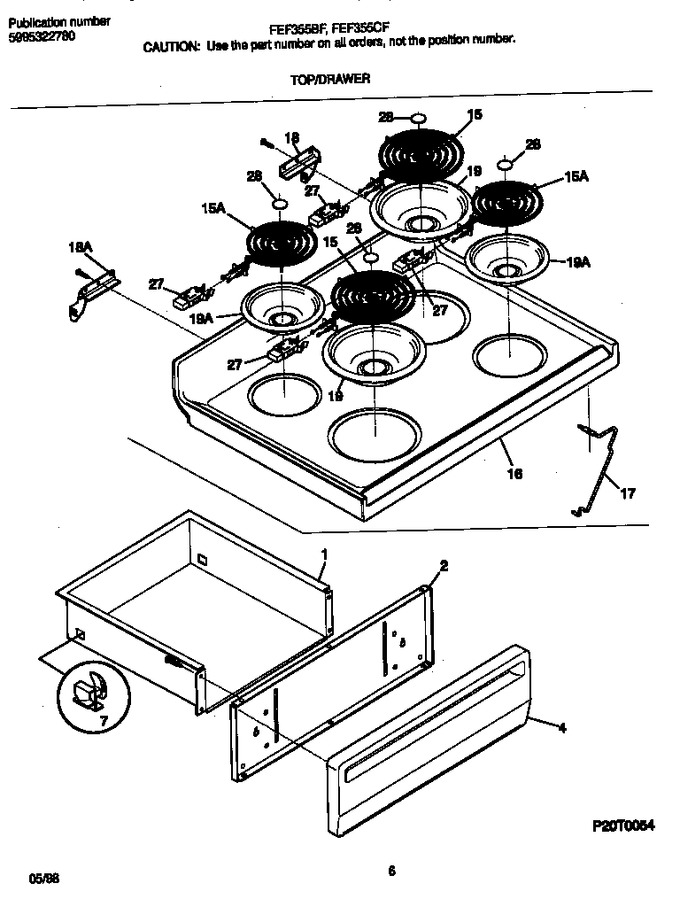

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316442301		Element-surface,large-8``   (Replaces: 5303012223)			Immediately	$ 44.39
15	318372211		Element-surface,small-6``   (Replaces: 08067762)			Immediately	$ 45.14
16	316020908		Main Top, Almond		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316048412		Pan-surface Element,almond ,lg/8 Inch ,		Appelez-nous	-
19	316048409		Pan-surface Element,almond ,sml/6 Inch ,		Appelez-nous	-
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion,1 1/2``dia ,black ,				$ 64.46
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
*70693	316001725		Harness-wiring, Surface Element		Appelez-nous	-
*70694	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*70695	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*70697	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*70698	316058600		Clip-surface Element, (4)		Appelez-nous	-
*70700	316089600		Spacer-drawer, (2)		Appelez-nous	-
*70701	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*70702	5308014215		Screw,8-x 1/2 ,(4)				$ 2.28
*70703	08067785		Screw,hex Washer Head, 8-18(ab) X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
