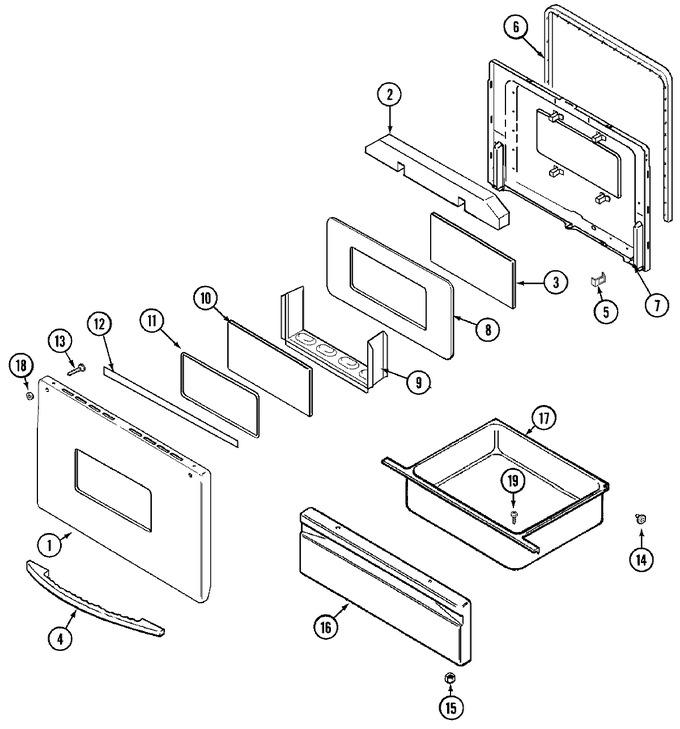

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74006288 | Panel, Door (wht) | 10 |
|
- | ||||
| 2 | 74002458 | Insulation, Door | 10 |
|
- | ||||
| 3 | 74002002 | Glass, Inner | 10 |
|
$ 62.17 | ||||
| 4 | 74006291 | Handle, Door (wht) | 10 |
|
- | ||||
| 5 | 7112P034-60 | Clip, Door | 10 |
|
- | ||||
| 6 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 10 |
|
Immediately | $ 56.83 | |||
| 7 | 74005097 | Lining, Door | 10 |
|
- | ||||
| 8 | 74002461 | Baffle, Door | 10 |
|
- | ||||
| 8 | 7101P209-60 | Screw | 10 |
|
- | ||||
| 9 | 74002462 | Support, Outer Glass | 10 |
|
- | ||||
| 10 | 74002464 | Glass, Door (outer-wht) | 10 |
|
- | ||||
| 11 | 7201P017-60 | Gasket, Window | 10 |
|
$ 52.69 | ||||
| 12 | 8270P090-60 | Tape, Foil (3`` Wide) | 10 |
|
- | ||||
| 13 | WP74006515 | Screw (10abxpan Zn) (Replaces: 74006295) | 10 |
|
$ 7.29 | ||||
| 14 | 74005231 | Shaft, Storage Drawer Roller | 10 |
|
$ 9.23 | ||||
| 14 | WP74004078 | Roller, Drawer (Replaces: 74004078) | 10 |
|
Immediately | $ 10.70 | |||
| 14 | WP488130 | Nut (Replaces: 7103P082-60) | 10 |
|
$ 6.27 | ||||
| 15 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 10 |
|
$ 4.00 | ||||
| 16 | 74003399 | Panel, Drawer (wht) | 10 |
|
- | ||||
| 17 | 71003042 | Drawer, Storage | 10 |
|
- | ||||
| 17 | 74008335 | Bracket, Drawer | 10 |
|
- | ||||
| 18 | 74001521 | Washer (1``) | 10 |
|
$ 5.27 | ||||
| 19 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | 10 |
|
$ 6.77 |
