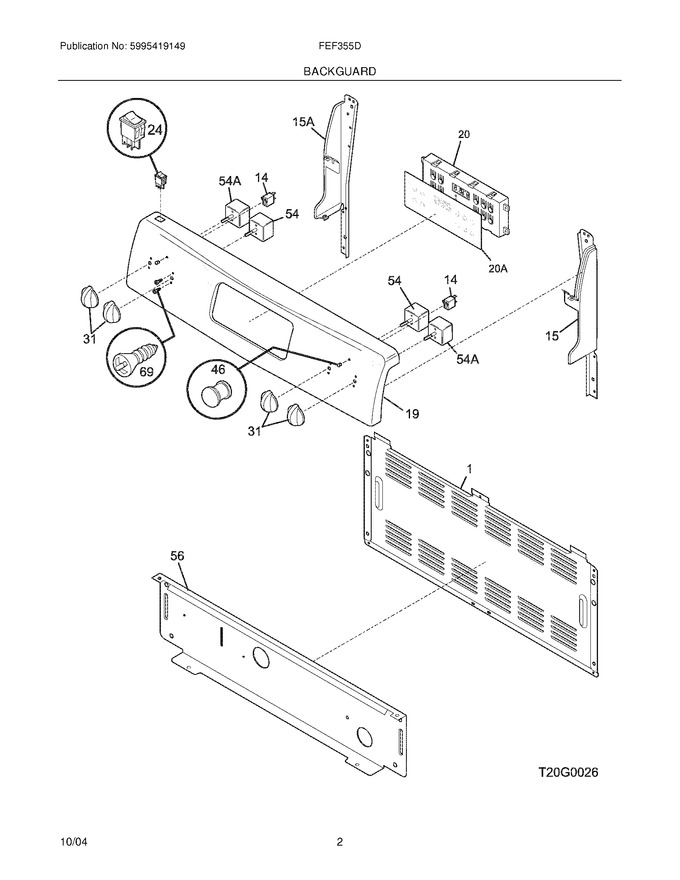

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316424142		Panel,control ,white		Appelez-nous	-
24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316246000)			Immediately	$ 16.13
31	316223000		Knob,control ,white			Immediately	$ 72.80
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316234001		Shield,backguard ,white ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,				$ 3.12
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316419137		Overlay,clock ,white ,es300   (Replaces: 316419104)			Immediately	$ 31.34
F20	5304509493		Clock/timer,electronic ,es300   (Replaces: 316418200)			Immediately	$ 212.37
F54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
