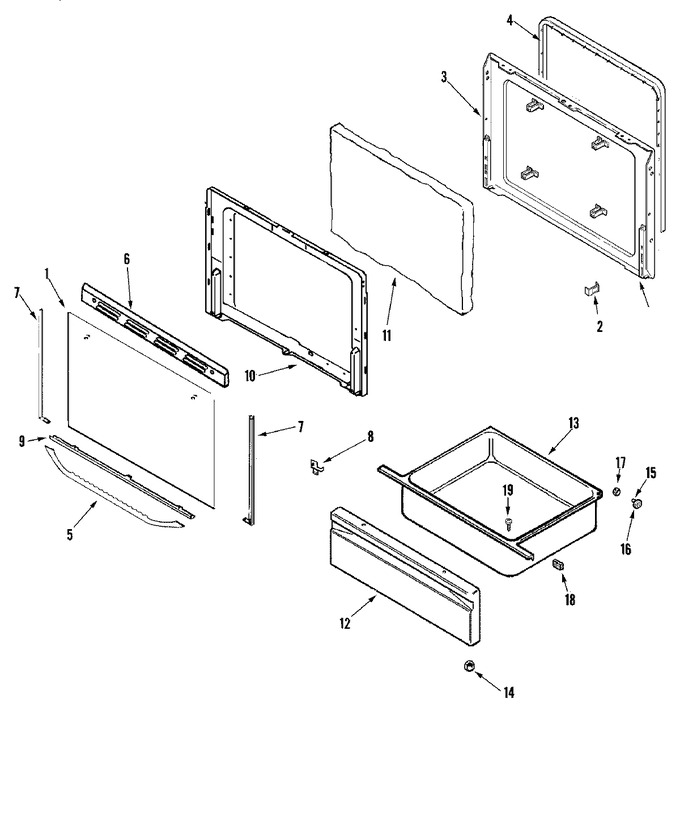

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010335 | Glass, Door (blk) | 10 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 10 |
|
- | ||||
| 3 | 74009377 | Lining, Oven Door | 10 |
|
- | ||||
| 3 | WP74001574 | Nut, Snap (round-blk) (Replaces: 74001574) | 10 |
|
Immediately | $ 9.91 | |||
| 4 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 10 |
|
Immediately | $ 56.83 | |||
| 5 | 74010338 | Handle, Door (blk) | 10 |
|
$ 84.76 | ||||
| 5 | WP74006515 | Screw W/washer (handle Mtg) (Replaces: 74006635) | 10 |
|
$ 7.29 | ||||
| 6 | 74010239 | Trim, Door Top (blk) | 10 |
|
- | ||||
| 7 | 74009692 | Trim, Door (blk-rt) | 10 |
|
- | ||||
| 7 | 74009693 | Trim, Door (blk-lt) | 10 |
|
- | ||||
| 7 | WP74004224 | Tape, Single Sided (wht) (Replaces: 74004224) | 10 |
|
$ 10.53 | ||||
| 7 | WP74001574 | Nut, Snap (round-blk) (Replaces: 74001574) | 10 |
|
Immediately | $ 9.91 | |||
| 7 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 3801F832-45 | Bracket, Door Handle (lt) (Replaces: 74009699) | 10 |
|
$ 19.12 | ||||
| 8 | 3801F831-45 | Bracket, Door Handle (rt) (Replaces: 74009698) | 10 |
|
$ 19.17 | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74009686 | Support, Glass (blk) | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 3601F218-51 | Baffle, Door Solid | 10 |
|
- | ||||
| 11 | 74001842 | Insulation, Door | 10 |
|
- | ||||
| 12 | 74003399 | Panel, Drawer (wht) | 10 |
|
- | ||||
| 13 | 74008337 | Drawer, Storage | 10 |
|
$ 171.37 | ||||
| 14 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 10 |
|
$ 4.00 | ||||
| 15 | 74005231 | Shaft, Storage Drawer Roller | 10 |
|
$ 9.23 | ||||
| 16 | WP74004078 | Roller, Drawer (Replaces: 74004078) | 10 |
|
Immediately | $ 10.70 | |||
| 17 | WP488130 | Nut (Replaces: 7103P082-60) | 10 |
|
$ 6.27 | ||||
| 18 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | 10 |
|
$ 9.48 | ||||
| 19 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | 10 |
|
$ 6.77 |
