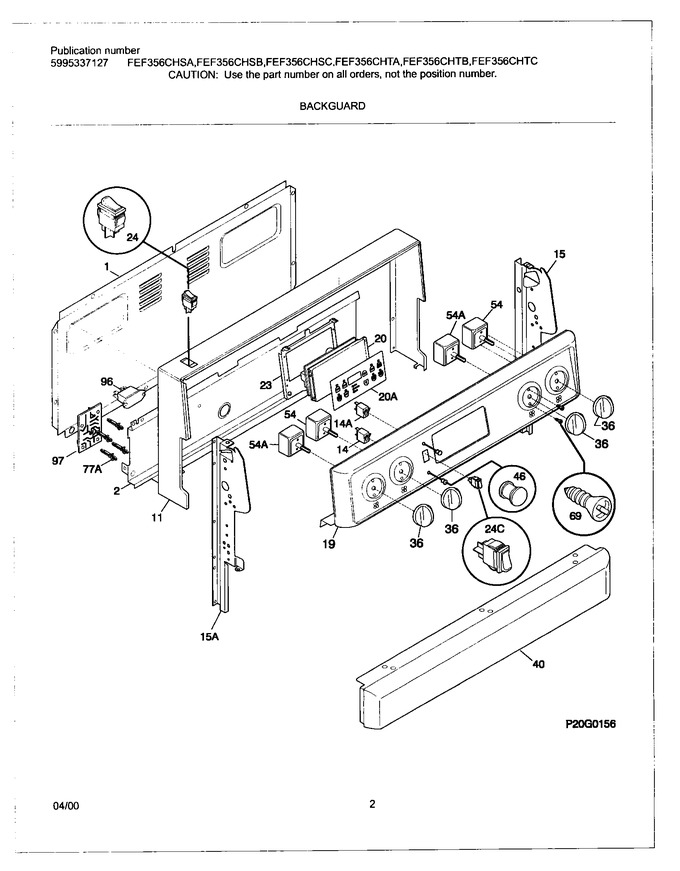

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3106081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316083721		Trim,wrapper ,white		Appelez-nous	-
14	316022504		Light-indicator		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100567		Panel-backguard Control,white		Appelez-nous	-
20	316101502		Overlay-clock,white				$ 108.15
23	316100300		Bracket-clock Mtg		Appelez-nous	-
36	316025106		Knob,control ,white				$ 57.64
40	316025808		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
69	5303292005		Screw (2)		Appelez-nous	-
96	316113700		Relay		Appelez-nous	-
97	318111400		Relay		Appelez-nous	-
14A	316022500		Light/lamp, Indicator , Warmer Zone ,125 V			Immediately	$ 53.57
15A	316023109		Support,backguard ,lh		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
F20	316101004		Clock/timer		Appelez-nous	-
F24	5304527842		Switch,oven Light ,white ,rocker   (Replaces: 316118101)			Immediately	$ 16.13
F24C	316259800		Switch-speed Bake,white   (Replaces: 316114000)				$ 36.21
F54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
NI	316071902		Gasket-edge		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316002688		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
