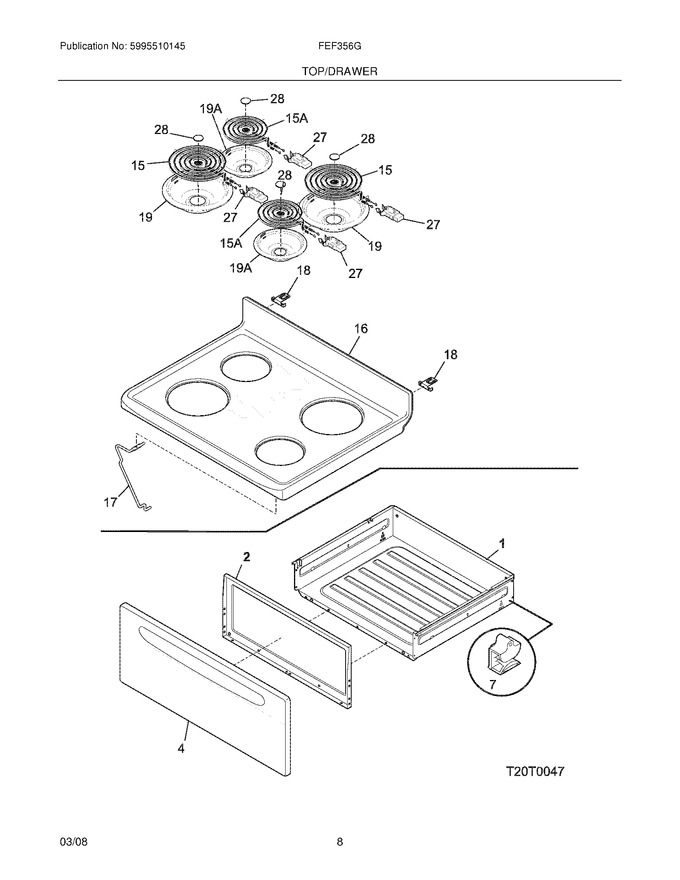

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 28.83
4	316403503		Panel,drawer Front ,bisque		Appelez-nous	-
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316202389		Main Top,bisque				$ 259.92
17	316057601		Rod,support ,main Top				$ 64.49
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
F15	316442301		Element,surface ,8`` ,large   (Replaces: 318372204)			Immediately	$ 44.39
F15A	318372211		Element,surface ,6`` ,small   (Replaces: 318372201)			Immediately	$ 45.14
F19	316048423		Pan-burner,surface Element ,bisque ,lg/8 Inch,(2) ,w/clip		Appelez-nous	-
F19A	316048424		Pan-burner,surface Element ,bisque ,sml/6 Inch,(2) ,w/clip		Appelez-nous	-
FNI	316580420		Wiring Harness,surface Element   (Replaces: 316253501)			Immediately	$ 196.47
NI	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
