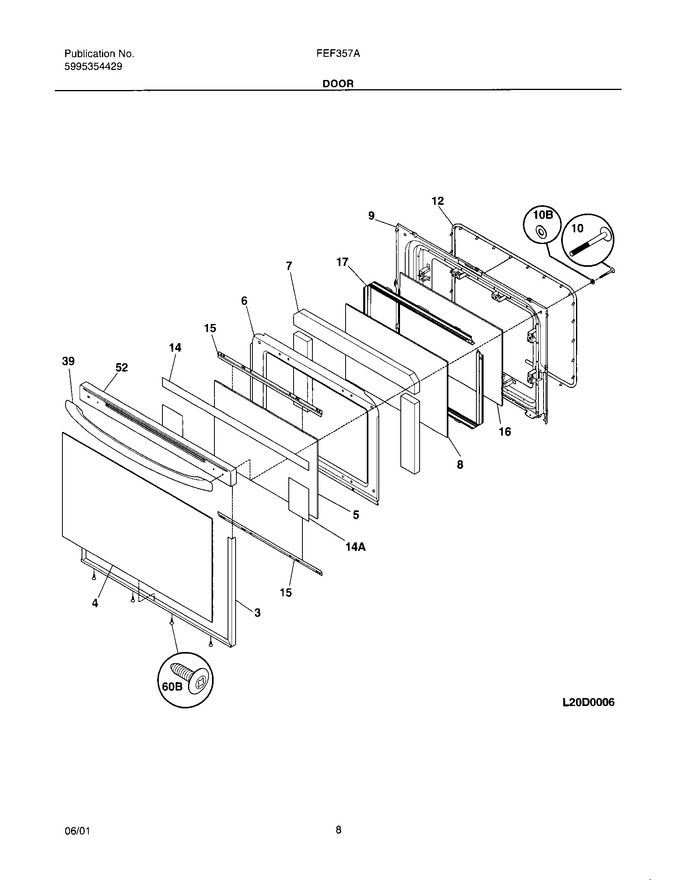

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935193		Trim Kit-door,3 Sided ,bisque ,w/tape And Foil		Appelez-nous	-
4	5303935202		Glass,door Kit ,bisque ,outer ,w/ Foil Tape				$ 301.35
5	5304503232		Glass-oven Door,airwash   (Replaces: 316237100)				$ 116.95
6	316222707		Shield-wool,oven Door				$ 122.01
7	316236700		Insulation-door				$ 54.76
8	5304503232		Glass-oven Door,inner   (Replaces: 316117500)				$ 116.95
9	316230605		Liner-door,oven		Appelez-nous	-
10	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
10	316001013		Screw,wafer Head `10-24 X 1.375 ,handle Mtg.			Immediately	$ 2.41
12	316230900		Seal-oven Door				$ 193.57
14	316102202		Foil-aluminum,4`` X 5.5`` ,clear ,(2)				$ 8.74
14	316574603		Foil-aluminum,1.5`` X 29`` ,clear   (Replaces: 316102207)				$ 21.23
15	316237201		Bracket-glass,airwash ,(2)		Appelez-nous	-
16	316237000		Glass,oven Door ,heat Barrier		Appelez-nous	-
17	316117701		Spacer-glass,(2)				$ 53.66
39	316203003		Handle,door ,bisque				$ 214.62
52	316201007		Cap-door Trim,bisque		Appelez-nous	-
60	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	3203618		Rivet,pop		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
