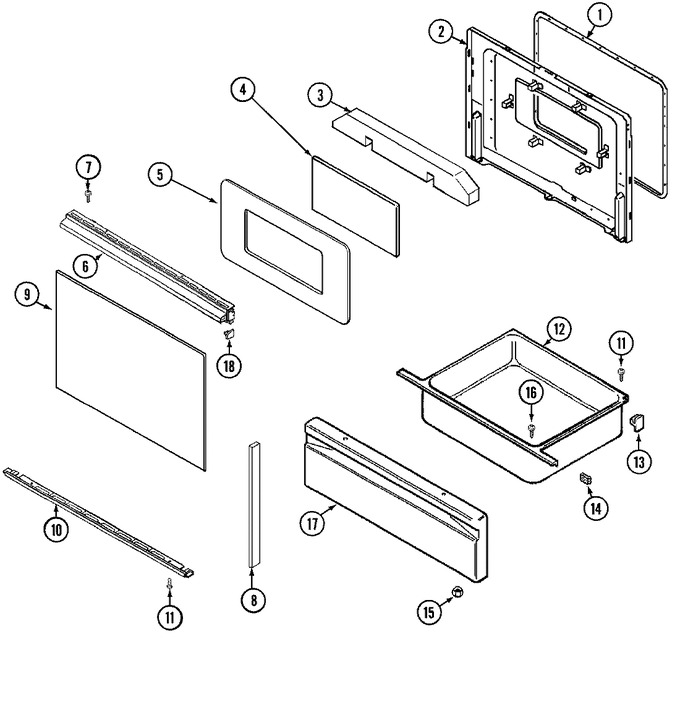

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 28 |
|
Immediately | $ 56.83 | |||
| 2 | 74002460 | Lining, Door | 28 |
|
- | ||||
| 3 | 74002458 | Insulation, Door | 28 |
|
- | ||||
| 4 | 74002459 | Glass, Door (inner) | 28 |
|
- | ||||
| 5 | 74002461 | Baffle, Door | 28 |
|
- | ||||
| 6 | 7701P103-60 | Handle, Door (blk) | 28 |
|
- | ||||
| 7 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 28 |
|
$ 15.94 | ||||
| 8 | 74002084 | End Cap, Door (blk) | 28 |
|
- | ||||
| 9 | 7902P321-60 | Glass, Door (blk) | 28 |
|
- | ||||
| 10 | 7744P105-60 | Trim, Bottom (blk)----na | 28 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 28 |
|
Immediately | $ 12.62 | |||
| 12 | 3405F015-80 | Drawer, Storage | 28 |
|
- | ||||
| 13 | 8004P026-60 | Support, Drawer (rear) | 28 |
|
$ 9.29 | ||||
| 14 | WP854334 | Seal, Door Panel (Replaces: 7208P009-60) | 28 |
|
$ 11.95 | ||||
| 15 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 28 |
|
$ 4.00 | ||||
| 16 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 28 |
|
$ 6.77 | ||||
| 17 | 2416F039-64 | Panel, Drawer (alm) | 28 |
|
- | ||||
| 18 | 74002539 | End Cap, Handle (rt-blk) | 28 |
|
- | ||||
| 18 | 74002540 | End Cap, Handle (lt-blk) | 28 |
|
- |
