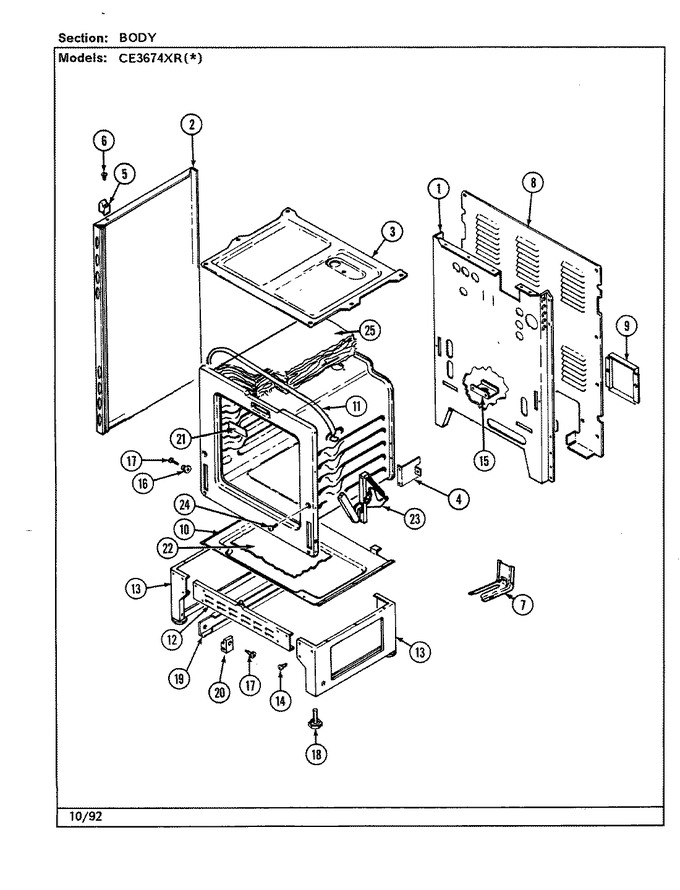

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F184-80		Back, Main	1	Appelez-nous	-
2	2618F085-71		Panel, Side (wht)	1	Appelez-nous	-
2	2618F099-71		Panel, Side (wht)	11	Appelez-nous	-
3	4011F208-19		Box, Burner	1	Appelez-nous	-
4	3807F400-51		Support,oven Rear	1	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	1	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	1	Appelez-nous	-
6	WP74004005		Screw   (Replaces: 7118P013-60)	1			$ 6.95
7	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	1			$ 26.33
7	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	1		Immediately	$ 4.69
8	4005F348-51		Cover, Main Back Wire	1	Appelez-nous	-
9	4005F427-51		Cover, Access	1	Appelez-nous	-
10	3804F109-51		Retainer, Bottom Insulation	1	Appelez-nous	-
11	4820F001-59		Strap, Retainer	1	Appelez-nous	-
12	4020F001-80		Pedestal, Front/rear	1	Appelez-nous	-
13	4020W007-80		Pedestal, Side	1	Appelez-nous	-
14	W11233072		Screw   (Replaces: 7101P290-60)	1		Immediately	$ 12.62
15	3605F174-51		Plate, Conduit Tubing	1	Appelez-nous	-
16	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	1			$ 7.07
17	W11772394		Screw   (Replaces: 7101P334-60)	1		Immediately	$ 10.94
18	7101P306-60		Leg, Leveling	1	Appelez-nous	-
19	3406F028-51		Runner, Drawer	1	Appelez-nous	-
20	8004P025-60		Support, Drawer	1	Appelez-nous	-
21	8114P336-60		Cover Lock Slot	1	Appelez-nous	-
22	8312P058-60		Foil, Insulation Retainer	1	Appelez-nous	-
23	7106P032-60		Hinge, Door	1	Appelez-nous	-
24	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	1			$ 4.29
25	4804F017-60		Insulation, Back	1	Appelez-nous	-
25	4804F018-60		Insulation, Wrap	1	Appelez-nous	-
