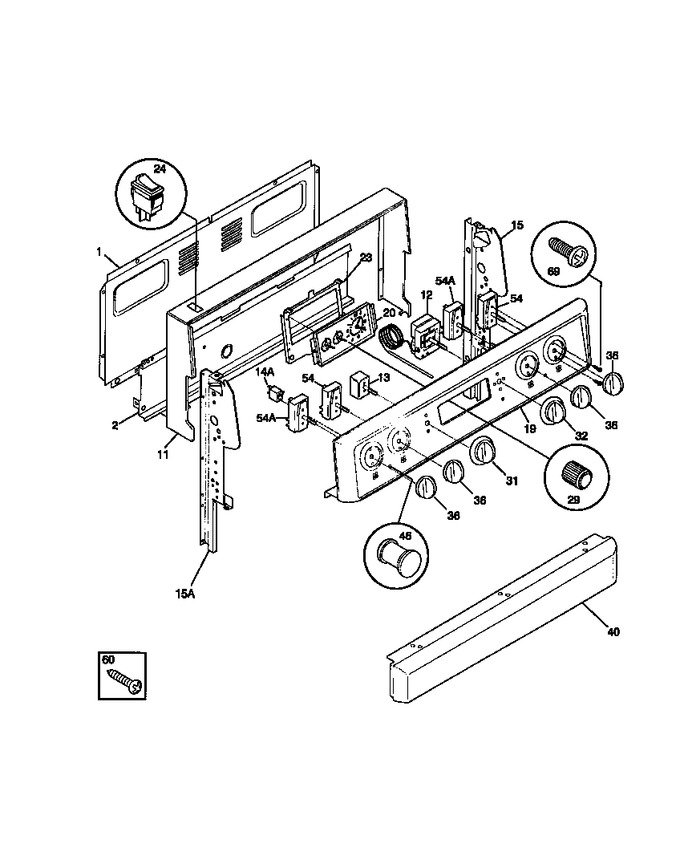

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316061807		Trim-wrapper, Black		Appelez-nous	-
12	316021400		Thermostat-oven		Appelez-nous	-
13	316023200		Switch-selector				$ 176.44
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316024413		Panel-control, Metal		Appelez-nous	-
20	316017404		Clock/timer, Analog 3 Stem		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
29	316029000		Knob-clock		Appelez-nous	-
31	316054908		Knob-selector		Appelez-nous	-
32	316054902		Knob-thermostat		Appelez-nous	-
36	316025100		Knob-control, Infinite Sw		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 3/16, Sw To Cntl Pnl, (8)		Appelez-nous	-
*33280	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*33281	316034800		Light/lamp, Ind, Hot Surface		Appelez-nous	-
*33282	316035700		Lens-light/lamp, Indicator		Appelez-nous	-
*33283	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
