SELECT A DIAGRAM

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

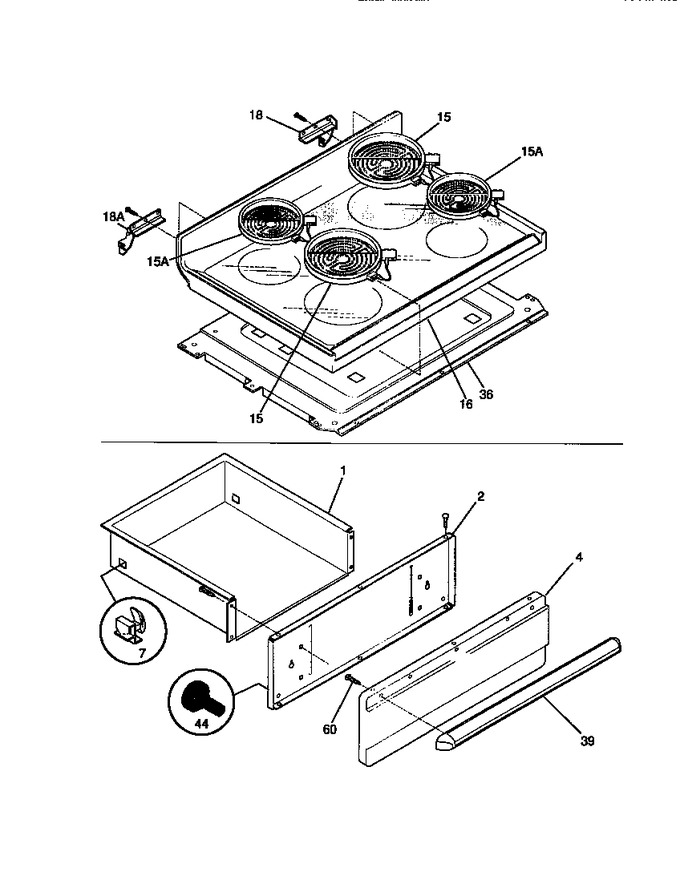

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316035505		Main Top Assy, Glass/steel, Enamel, White		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*33290	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*33291	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*33292	5309951550		Cleaner-cooktop		Appelez-nous	-
*33293	316001732		Harness-wiring, Surface Element		Appelez-nous	-
15A	318198817		Element, Surface, Coil, Small/6 Inch, W/limit Switch   (Replaces: 316010200)			Immediately	$ 192.78
15A	318198834		Element-surface, Coil, Large / 8 Inch, W/limit Switch   (Replaces: 316010202)				$ 205.36
15B	5303305628		Limiter Switch, Small/6 Inch (not Illustrated)		Appelez-nous	-
15B	5303305629		Limiter Switch, Large/8 Inch (not Illustrated)		Appelez-nous	-
36A	316033610		Panel-element Mtg, Glass Top		Appelez-nous	-
36B	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36C	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
