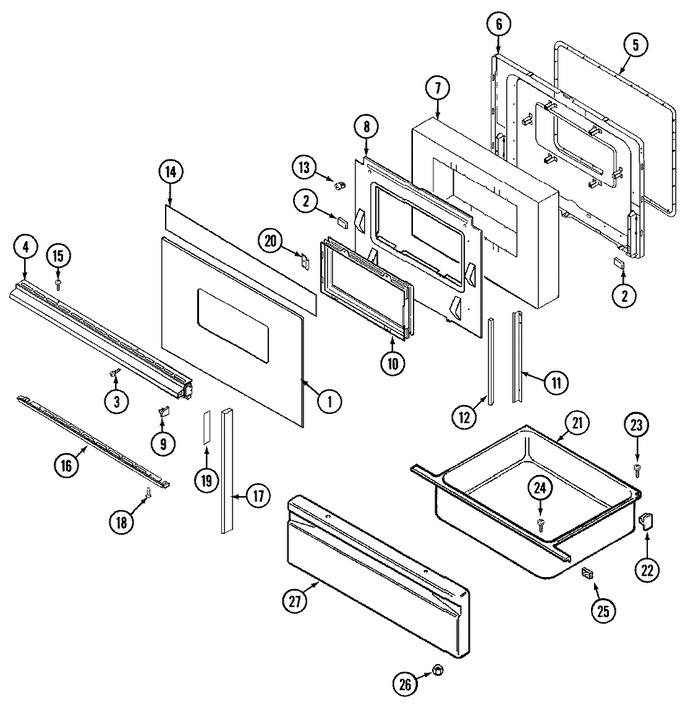

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P321-60 | Glass, Door (blk) | 01 |
|
- | ||||
| 2 | 8010P085-60 | Spacer, Rubber | 01 |
|
- | ||||
| 3 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 01 |
|
Immediately | $ 7.69 | |||
| 4 | 7701P103-60 | Handle, Door (blk) | 01 |
|
- | ||||
| 5 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 01 |
|
Immediately | $ 77.61 | |||
| 6 | 74001058 | Lining, Door | 01 |
|
- | ||||
| 7 | 74001842 | Insulation, Door | 01 |
|
- | ||||
| 8 | 3601F236-51 | Baffle, Door | 01 |
|
- | ||||
| 9 | 7744P076-60 | End Cap (lt) | 01 |
|
- | ||||
| 9 | 7744P075-60 | End Cap (rt) | 01 |
|
- | ||||
| 10 | 7907P014-60 | Glass Asy, Oven Door | 01 |
|
- | ||||
| 11 | 3818F052-51 | Channel, Air | 01 |
|
- | ||||
| 12 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 13 | 8010P075-60 | Spacer | 01 |
|
- | ||||
| 14 | 8270P090-60 | Tape, Foil (3`` Wide) | 01 |
|
- | ||||
| 15 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 16 | 7744P105-60 | Trim, Bottom (blk)----na | 01 |
|
- | ||||
| 17 | 7744P055-60 | End Cap, Oven Door (blk) | 01 |
|
- | ||||
| 18 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 19 | 8270P093-60 | Tape, End Cap | 01 |
|
- | ||||
| 20 | 3805F002-34 | Clamp, Window Assy. | 01 |
|
- | ||||
| 21 | 3405F019-80 | Drawer, Storage | 01 |
|
- | ||||
| 22 | 8004P026-60 | Support, Drawer (rear) | 01 |
|
$ 9.29 | ||||
| 23 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 01 |
|
Immediately | $ 12.62 | |||
| 24 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 01 |
|
Immediately | $ 12.62 | |||
| 25 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 26 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 01 |
|
$ 4.00 | ||||
| 27 | 2416F039-64 | Panel, Drawer (alm) | 01 |
|
- |
