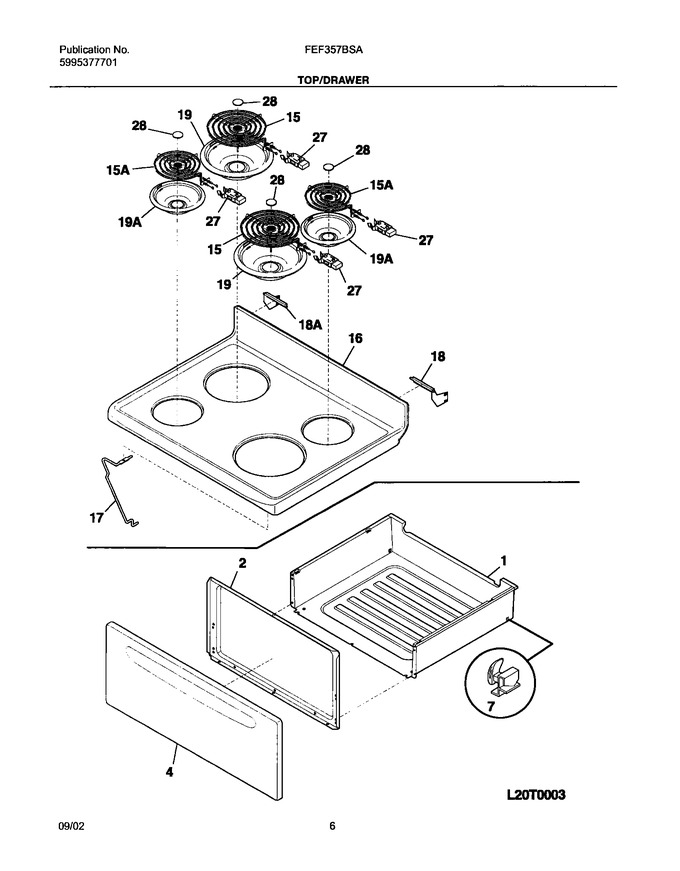

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	316231500		Liner,drawer				$ 54.40
4	316231305		Panel,drawer ,white				$ 55.80
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316202388		Main Top,white   (Replaces: 316202307)				$ 407.24
17	316057601		Rod,support ,main Top				$ 64.49
18	316235900		Hinge,main Top ,rh		Appelez-nous	-
19	318067053		Pan,surface Element ,large ,gray		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
18A	316235901		Hinge,main Top ,lh		Appelez-nous	-
19A	318067043		Pan,surface Element ,small ,gray		Appelez-nous	-
F15	316442301		Element,surface ,8`` ,large   (Replaces: 5303012223)			Immediately	$ 44.39
F15A	318372211		Element,surface ,6`` ,small   (Replaces: 08067762)			Immediately	$ 45.14
F27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
NI	5308014215		Screw				$ 2.28
NI	316580420		Wiring Harness,surface Element   (Replaces: 316253501)			Immediately	$ 196.47
NI	316058600		Clip,surface Element ,chrome ,(4)		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
