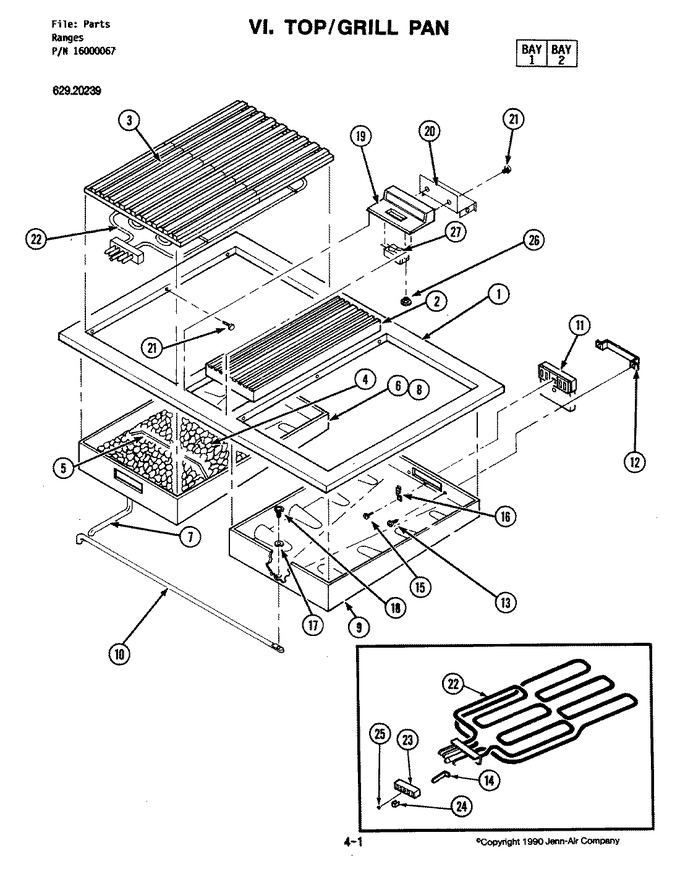

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701853 | Top | 1 |
|
- | ||||
| 2 | 702568 | Grill, Air | 1 |
|
- | ||||
| 3 | Y703746 | Grates, Grill (2) | 1 |
|
- | ||||
| 4 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 5 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 6 | Y712200 | Wire, Yellow | 1 |
|
- | ||||
| 6 | Y712197 | Wire, Brown | 1 |
|
- | ||||
| 6 | 712228 | Kit, Wire | 1 |
|
$ 66.14 | ||||
| 6 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 6 | Y712203 | Wire, Violet | 1 |
|
- | ||||
| 6 | Y712227 | Wire, Blue | 1 |
|
- | ||||
| 7 | Y702463 | Tube, Drain (left) | 1 |
|
- | ||||
| 8 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 9 | WP5708M008-60 | Wire, Violet (Replaces: Y712202) | 1 |
|
$ 87.19 | ||||
| 9 | WP5708M007-60 | Wire, Yellow (Replaces: Y712201) | 1 |
|
$ 117.23 | ||||
| 9 | Y712199 | Wire, Brown | 1 |
|
- | ||||
| 9 | Y701956 | Pan, Grill (rt) | 1 |
|
- | ||||
| 9 | Y712227 | Wire, Blue | 1 |
|
- | ||||
| 9 | Y712229 | Kit, Wire | 1 |
|
$ 91.71 | ||||
| 10 | Y702327 | Tube, Drain (right) | 1 |
|
- | ||||
| 11 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 12 | Y702698 | Bracket | 1 |
|
- | ||||
| 13 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 14 | Y708572 | Spade, Contact | 1 |
|
Immediately | $ 11.34 | |||
| 15 | 00489128 | Screw (Replaces: Y705026) | 1 |
|
$ 773.97 | ||||
| 16 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 17 | 702747 | Washer, Teflon | 1 |
|
- | ||||
| 18 | 702748 | Nut, Drain Tube | 1 |
|
- | ||||
| 19 | 705123 | Escutcheon | 1 |
|
- | ||||
| 20 | 702581 | Bracket, Filler | 1 |
|
- | ||||
| 21 | 703003 | Screw | 1 |
|
- | ||||
| 22 | Y700531 | Element Complete, 240v | 1 |
|
- | ||||
| 23 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 24 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 | ||||
| 25 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 26 | Y705023 | Palnut | 1 |
|
- | ||||
| 27 | 705126 | Switch, Fan | 1 |
|
- |
