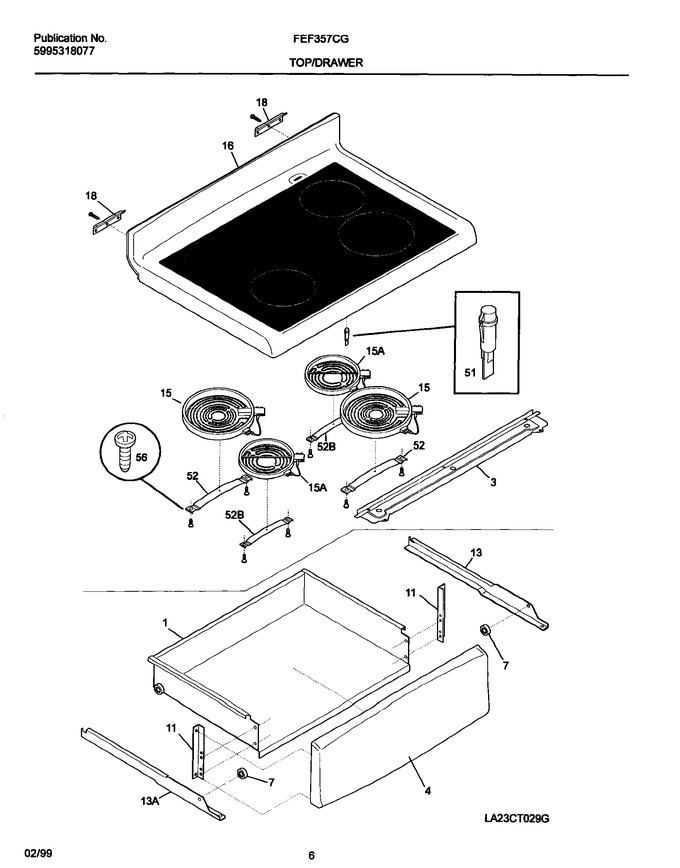

07 - Top / Drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144301		Support-main Top		Appelez-nous	-
4	318044303		Panel-drawer,black				$ 71.30
7	318014800		Spacer				$ 16.59
11	318107500		Bracket-support Drawer				$ 21.85
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318043859		Top		Appelez-nous	-
18	318074400		Hinge-main Top		Appelez-nous	-
51	5303297484		Light-indicator		Appelez-nous	-
52	318122003		Spring Element		Appelez-nous	-
56	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
13A	318018101		Channel-drawer,lh				$ 63.11
15A	318198817		Element-surface, 1200 W, Small/6 Inch   (Replaces: 316010203)			Immediately	$ 192.78
52B	318122000		Spring Element		Appelez-nous	-
F15	318198834		Element-surface, 2100 W, Large/8 Inch   (Replaces: 316010204)				$ 205.36
NI	5303323178		Tape		Appelez-nous	-
NI	5304400192		Retainer Wire		Appelez-nous	-
