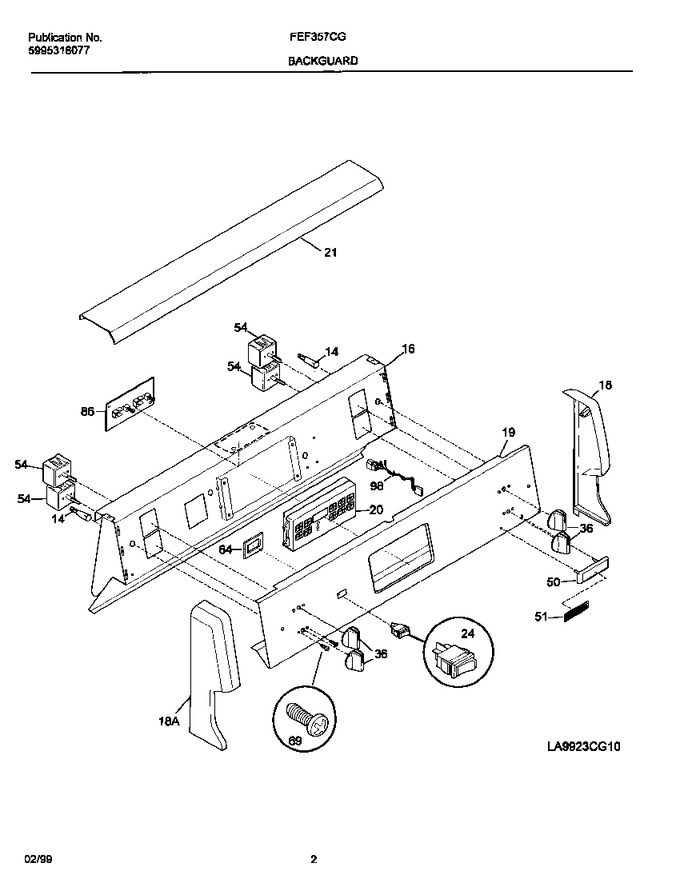

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	318044604		Light-indicator,red		Appelez-nous	-
16	318117423		Plate,instrument Mtg		Appelez-nous	-
18	318118300		End Cap,white ,rh		Appelez-nous	-
19	318117149		Panel-control,white		Appelez-nous	-
21	318118000		Trim-canopy/shield,white		Appelez-nous	-
36	318034801		Knob-control,white ,(4)		Appelez-nous	-
50	318146600		Nameplate,white				$ 8.82
51	318075703		Insert-nameplate Frigidaire		Appelez-nous	-
64	318112200		Spacer Rocker Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
86	318111201		Plate-connecting		Appelez-nous	-
98	318092405		Wiring Harness		Appelez-nous	-
18A	318118301		End Cap,white ,lh		Appelez-nous	-
F20	318013010		Clock/timer,electronic ,white		Appelez-nous	-
F24	5304527842		Switch-oven Light, Rocker Type   (Replaces: 316005607)			Immediately	$ 16.13
F54	318120500		Switch-surface Unit				$ 186.80
NI	5303311528		Screw		Appelez-nous	-
NI	154079601		Nut   (Replaces: 3201885)				$ 0.41
NI	5303308449		Fastener		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	5303310510		Screw <10-24 X 5/8 >				$ 14.18
NI	5303288566		Screw-6-20 X 1/4   (Replaces: 5303320848)				$ 2.12
NI	5303300265		Screw, 8-18 X 1/2				$ 15.17
