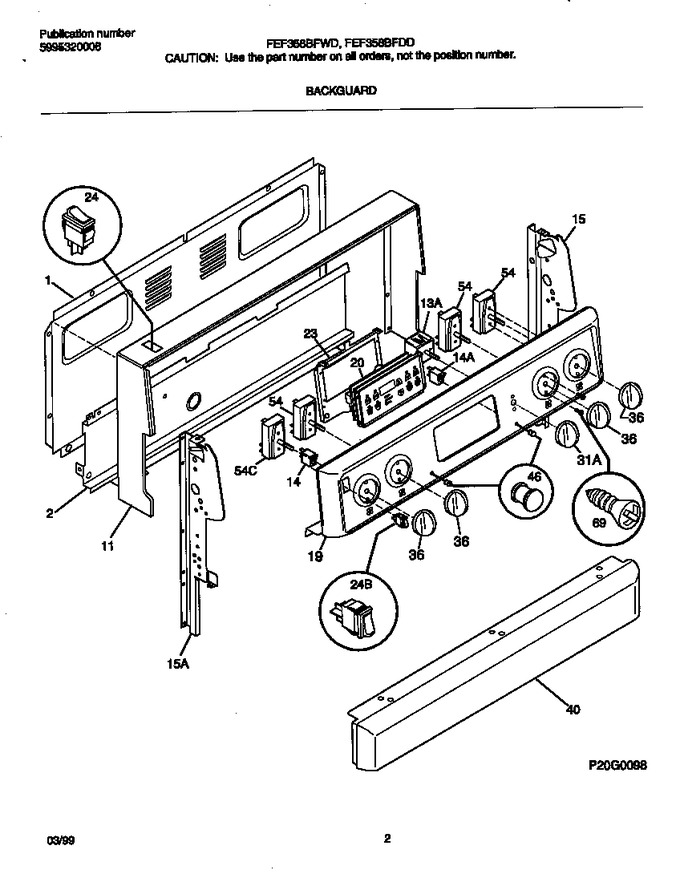

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316083719		Trim-wrapper,textured ,black		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100503		Panel-control,metal ,black		Appelez-nous	-
20	316101001		Clock/timer, Electronic				$ 419.79
23	316100300		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
24	316083100		Switch-rocker, Dual Element, Black, Lh, (2)				$ 89.31
31	316095603		Knob-warmer,black		Appelez-nous	-
36	316025100		Knob-control, Infinite Sw		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	5304528972		Switch, Infinite, Dual Element   (Replaces: 316049800)				$ 47.78
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*26720	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*26721	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*26722	316071902		Gasket-edge		Appelez-nous	-
*26723	316085600		Insulator-shield Thermostt		Appelez-nous	-
*26724	316112500		Template, Anti-tip Bracket				$ 3.55
*26725	316101503		Overlay-clock		Appelez-nous	-
*26726	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
