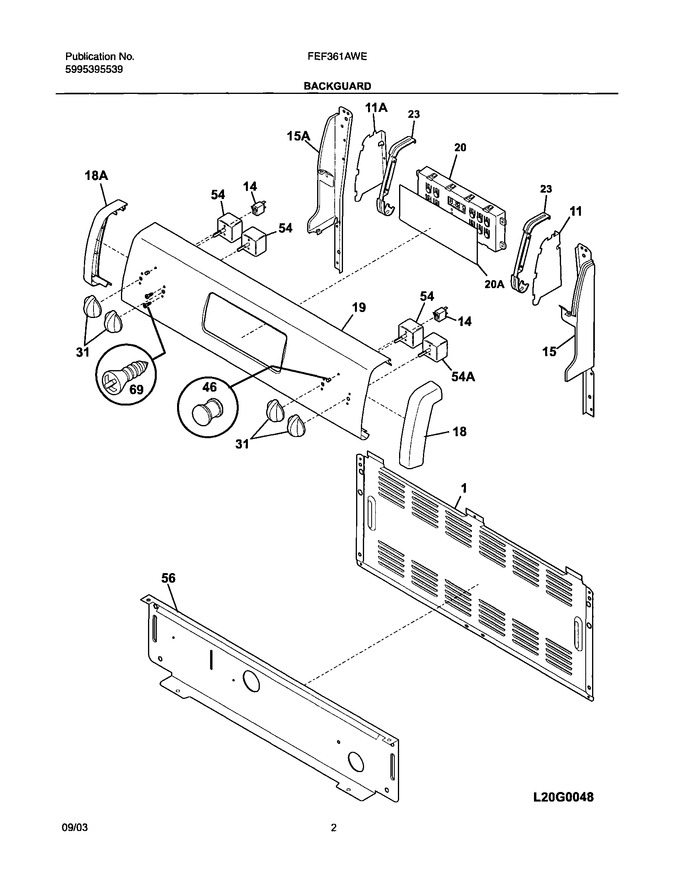

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
11	316241000		Shield,end Cap ,rh		Appelez-nous	-
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316220216		Support,backguard ,black ,rh				$ 79.85
18	316240904		End Cap,black ,rh		Appelez-nous	-
19	316244491		Panel,backguard ,black		Appelez-nous	-
23	316245900		Bracket,clock Mtg		Appelez-nous	-
31	316223002		Knob,black			Immediately	$ 57.64
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316234003		Shield,backguard ,black ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
11A	A2563116G		Shield,end Cap ,lh   (Replaces: 316241001)		Appelez-nous	-
15A	316220217		Support,backguard ,black ,lh				$ 61.32
18A	316240905		End Cap,black ,lh		Appelez-nous	-
20A	316220801		Overlay,clock ,black ,es200		Appelez-nous	-
F20	316207510		Clock/timer,electronic ,es200		Appelez-nous	-
F54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
