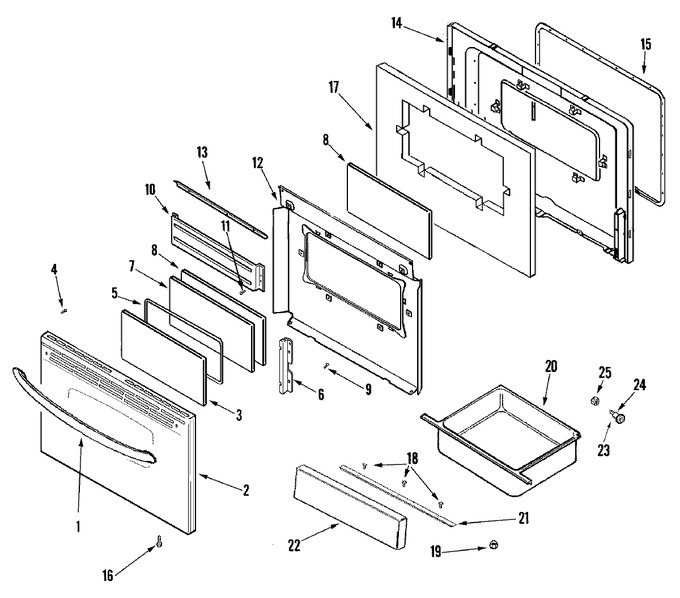

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010338		Handle, Door (blk)	10			$ 84.76
2	74010298		Insulation, Oven Door (foil)	10	Appelez-nous	-
2	74010355		Panel, Door (stl)	10	Appelez-nous	-
3	74001072		Glass, Outer Door (blk)	10	Appelez-nous	-
4	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
4	WP74006515		Screw 10-32 W/ Washer   (Replaces: 74006777)	10			$ 7.29
5	7201P017-60		Gasket, Window	10			$ 52.69
6	74003048		Retainer, Glass	10	Appelez-nous	-
7	74002002		Glass, Inner	10			$ 62.17
8	74003320		Glass, Inner	10			$ 86.35
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74005458		Baffle, Door (secondary)	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74009528		Baffle, Oven Door	10	Appelez-nous	-
13	74004902		Baffle, Auxiliary	10	Appelez-nous	-
14	74004972		Lining, Oven Door	10	Appelez-nous	-
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74001842		Insulation, Door	10	Appelez-nous	-
18	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
19	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
20	74008337		Drawer, Storage	10			$ 171.37
21	74009841		Handle, Drawer (stl)	10	Appelez-nous	-
22	74009842		Panel, Drawer Elect (stl)	10	Appelez-nous	-
23	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
24	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
25	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
