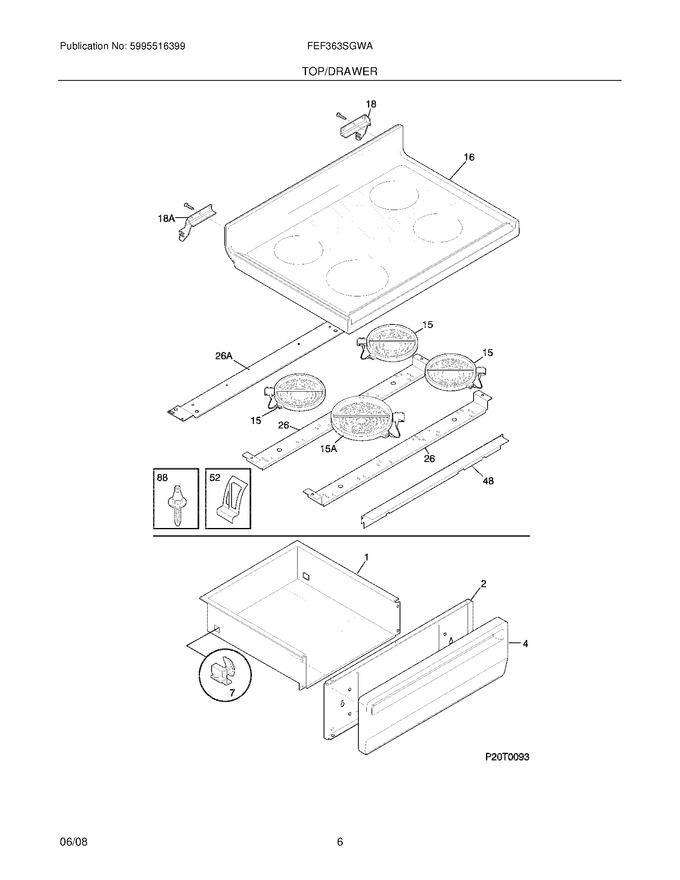

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer		Appelez-nous	-
2	3131975		Shield-drawer,liner ,aluminum ,front Panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316098138		Main Top,glass		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099101		Channel-support,element ,aluminum ,(2)		Appelez-nous	-
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip,element Mtg				$ 29.56
88	316099500		Pin,guide ,(2)				$ 6.53
18A	5303273063		Hinge-main Top (lh)				$ 48.41
26A	316099201		Bracket-support,chassis ,aluminum		Appelez-nous	-
F15	318198817		Element-surface,radiant , Small/6 Inch ,1200w,limit Sw Incl   (Replaces: 316010203)			Immediately	$ 192.78
F15A	318198834		Element-surface,radiant , Large/8 Inch ,2100w,limit Sw Incl   (Replaces: 316010204)				$ 205.36
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	3203618		Rivet,pop		Appelez-nous	-
NI	5309951550		Cleaner-cooktop		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
