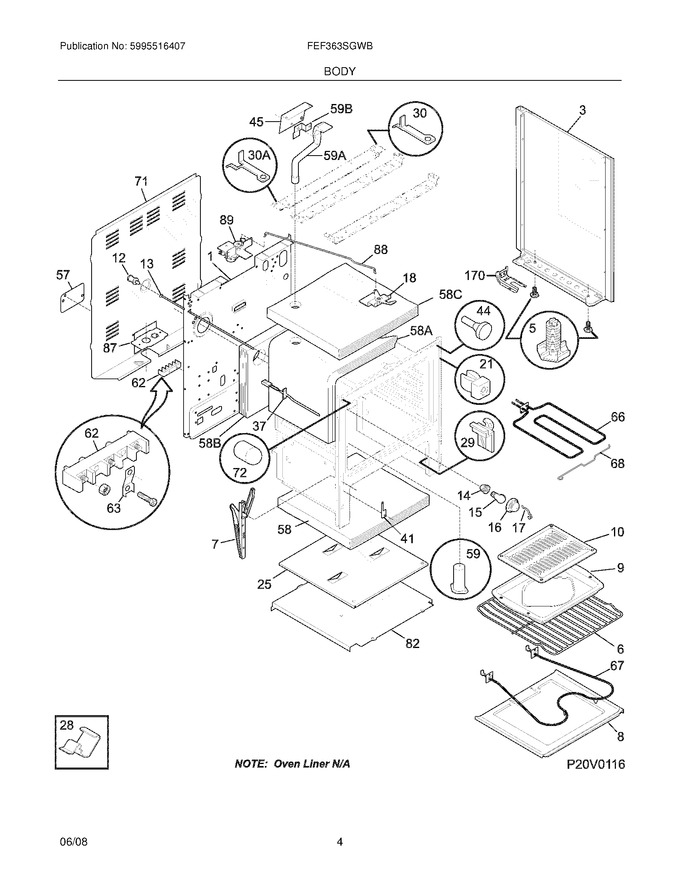

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080804		Panel,main Back ,dipped ,black ,short		Appelez-nous	-
3	316081034		Panel-bodyside,white ,rh		Appelez-nous	-
5	316107300		Screw-leveling		Appelez-nous	-
6	316067902		Rack,oven ,(2)			Immediately	$ 103.10
7	316007003		Hinge-oven Door,assembly		Appelez-nous	-
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
13	316026800		Rod-light Switch				$ 36.86
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	3014099		Spacer,bodyside				$ 3.62
25	3200848		Shield,heat ,lower		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	5303283574		Bracket-hinge, Main Top Rh		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper,rubber				$ 55.36
45	316066100		Shield-wire, S/t Vent		Appelez-nous	-
57	316081101		Cover-access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073602		Tube-oven Vent				$ 53.35
63	5301145190		Plate,grounding Strap		Appelez-nous	-
68	316075300		Support-element, Broil		Appelez-nous	-
71	316015805		Shield-rear Wall		Appelez-nous	-
72	5303285692		Cover-rod End,lt Switch Rod		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316026400		Rod,auto Latch				$ 21.79
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
30A	5303283575		Bracket-hinge, Main Top, Lh		Appelez-nous	-
58A	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
58C	3131304		Insulation, Oven Top		Appelez-nous	-
59A	316023601		Tube-oven Vent, Upper		Appelez-nous	-
F12	316027701		Switch-oven Light		Appelez-nous	-
F18	316036300		Latch-door		Appelez-nous	-
F37	5304497424		Probe-oven Temp   (Replaces: 316111200)			Immediately	$ 38.32
F62	5303935061		Terminal Block Kit		Appelez-nous	-
F66	5303051140		Element-broil,2950 W				$ 202.71
F67	316075103		Element-bake,lower Oven   (Replaces: 316075102)			Immediately	$ 42.36
F89	316028101		Motor,latch		Appelez-nous	-
FNI	316001540		Wiring Harness,main		Appelez-nous	-
NI	5303051099		Nut, Hex, 10-32		Appelez-nous	-
NI	316040100		Bracket-mounting,vent Tube		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316081035		Panel-bodyside,white ,lh		Appelez-nous	-
NI	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
NI	316101600		Shield,smoothtop Vent		Appelez-nous	-
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 15.22
