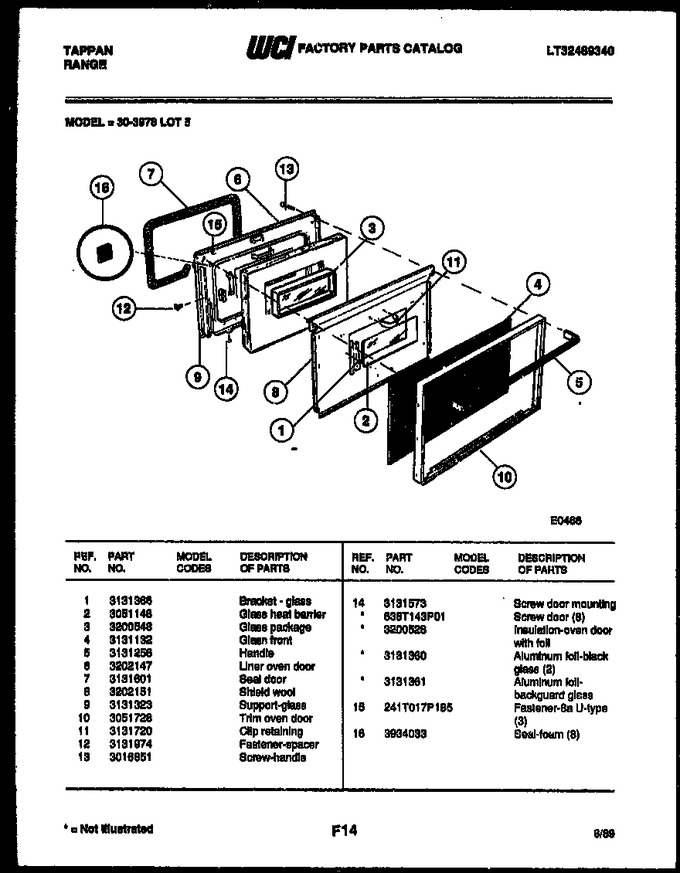

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131366		Bracket - Glass		Appelez-nous	-
2	3051148		Glass, Heat Barrier		Appelez-nous	-
3	3200548		Glass-package		Appelez-nous	-
4	3131132		Glass, Front		Appelez-nous	-
5	3131256		Handle		Appelez-nous	-
6	3202147		Liner-oven Door		Appelez-nous	-
7	3131601		Seal, Door		Appelez-nous	-
8	3202151		Shield, Wool		Appelez-nous	-
9	3131323		Support, Glass		Appelez-nous	-
10	3051728		Trim, Oven Door		Appelez-nous	-
11	3131720		Clip-retaining		Appelez-nous	-
12	3131974		Fastener-spacer		Appelez-nous	-
13	3016851		Screw-handle		Appelez-nous	-
14	3131573		Screw-door Mounting		Appelez-nous	-
15	241T017P185		Fastener-8au Type (3)		Appelez-nous	-
16	3934033		Seal-foam (8)		Appelez-nous	-
14A	636T143P01		Screw		Appelez-nous	-
14B	3200528		Insulation-oven Door With Foil (non-illustrated)		Appelez-nous	-
14C	3131360		Aluminum Foil-black Glass (2) (non-illustrated)		Appelez-nous	-
14D	3131361		Aluminum Foil-backguard Glass (non-illustrated)		Appelez-nous	-
