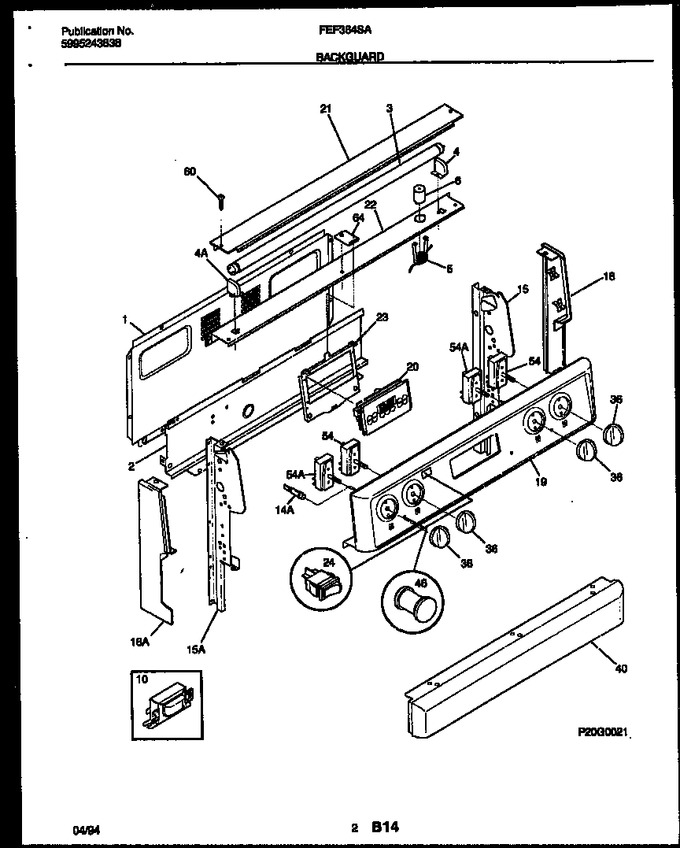

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316015701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015901		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	5303051115		Ballast-lamp		Appelez-nous	-
15	316049102		Support-backguard, Rh		Appelez-nous	-
18	316026900		End Cap, Black, Rh				$ 53.24
19	316024501		Panel-control, Metal		Appelez-nous	-
20	316027200		Clock/timer, Eoc, Membrane		Appelez-nous	-
21	316024900		Trim, Canopy/shield, Black		Appelez-nous	-
22	316059901		Support-receptacle		Appelez-nous	-
23	316060001		Bracket-clock Mtg, Black		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
36	316025100		Knob-control, Infinite Sw		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
64	316062400		Retainer, Plate, 64		Appelez-nous	-
*97811	316059800		Foil-aluminum		Appelez-nous	-
14A	316022502		Light/lamp, Indicator, 250 V, (3)		Appelez-nous	-
15A	316049103		Support-backguard, Lh		Appelez-nous	-
18A	316026901		End Cap, Black, Lh		Appelez-nous	-
4A	3051223		Receptacle-lamp, Lh		Appelez-nous	-
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
