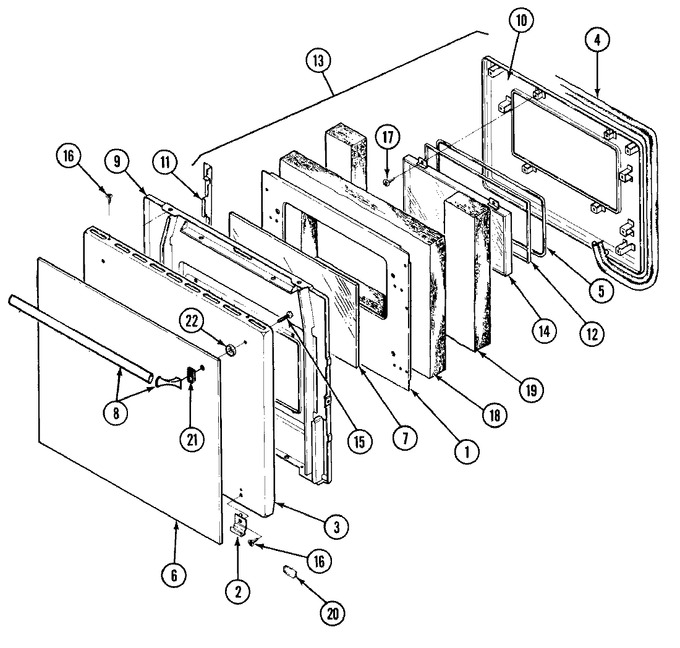

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door
03 - Oven
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 01 |
|
$ 12.69 | ||||
| 1 | 3601F131-51 | Baffle, Door | 01 |
|
- | ||||
| 2 | 3819F010-70 | Clip, Glass Retainer (blk) | 01 |
|
- | ||||
| 3 | 2401F103-70 | Panel, Door (blk) | 01 |
|
- | ||||
| 4 | 7201P004-60 | Gasket | 01 |
|
- | ||||
| 5 | 7201P020-60 | Gasket | 01 |
|
- | ||||
| 6 | 8270P065-60 | Tape | 01 |
|
- | ||||
| 6 | 7902P336-60 | Glass, Outer (blk) | 01 |
|
$ 97.39 | ||||
| 7 | 7902P097-60 | Glass, Inner | 01 |
|
$ 63.87 | ||||
| 8 | 7701P024-60 | Handle, Door (blk) | 01 |
|
$ 67.19 | ||||
| 9 | 2402W130-19 | Lining, Door | 01 |
|
- | ||||
| 10 | 2410W042-19 | Pad, Door | 01 |
|
- | ||||
| 11 | 3804F021-45 | Retainer, Gasket | 01 |
|
- | ||||
| 12 | 3804F051-80 | Retainer, Glass | 01 |
|
- | ||||
| 13 | 2410A042-19 | Pad, Oven Door Assy. | 01 |
|
- | ||||
| 14 | 5700A082-60 | Window Assy. | 01 |
|
$ 164.77 | ||||
| 15 | 7101P004-60 | Screw | 01 |
|
- | ||||
| 16 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 18 | 7002P023-60 | Insulation, Door----na | 01 |
|
- | ||||
| 19 | 7002P021-60 | Insulation, Door | 01 |
|
- | ||||
| 20 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 21 | 8010P015-60 | Spacer, Handle (blk) | 01 |
|
- | ||||
| 22 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 |
