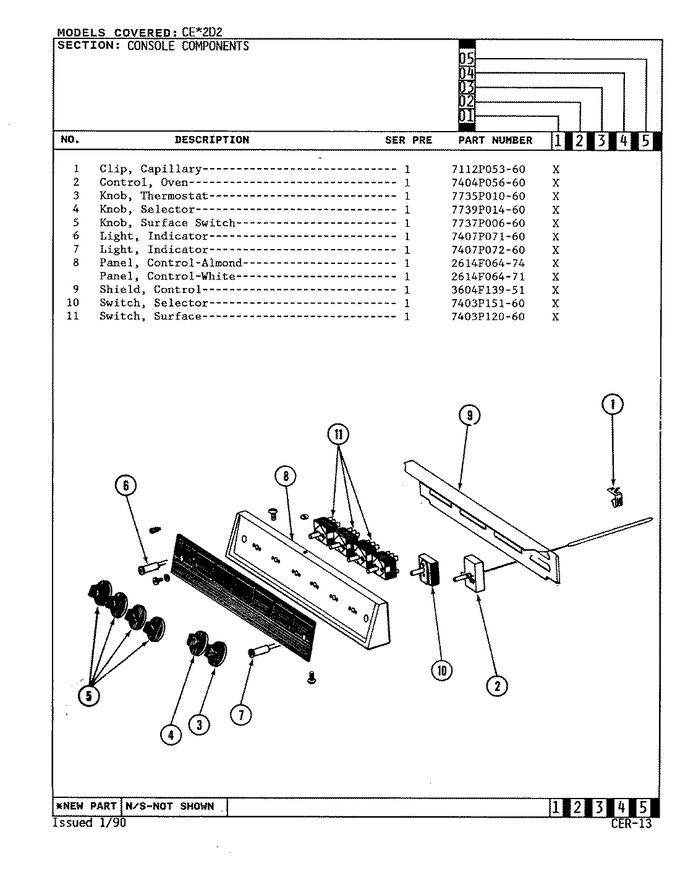

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112P053-60 | Clip, Capillary | 1 |
|
- | ||||
| 2 | 7404P056-60 | Thermostat | 1 |
|
- | ||||
| 3 | 7735P010-60 | Knob, Thermostat | 1 |
|
- | ||||
| 4 | 7739P014-60 | Knob, Selector Switc | 1 |
|
- | ||||
| 5 | 7737P006-60 | Knob, Inf. | 1 |
|
- | ||||
| 6 | 7407P071-60 | Light, Indicator | 1 |
|
- | ||||
| 7 | 7407P072-60 | Light, Indicator | 1 |
|
- | ||||
| 8 | 2614F064-74 | Panel, Control (alm) | 1 |
|
- | ||||
| 9 | 3604F139-51 | Shield, Control | 1 |
|
- | ||||
| 10 | 7403P151-60 | Switch, Selector | 1 |
|
- | ||||
| 11 | 7403P120-60 | Switch | 1 |
|
- |
