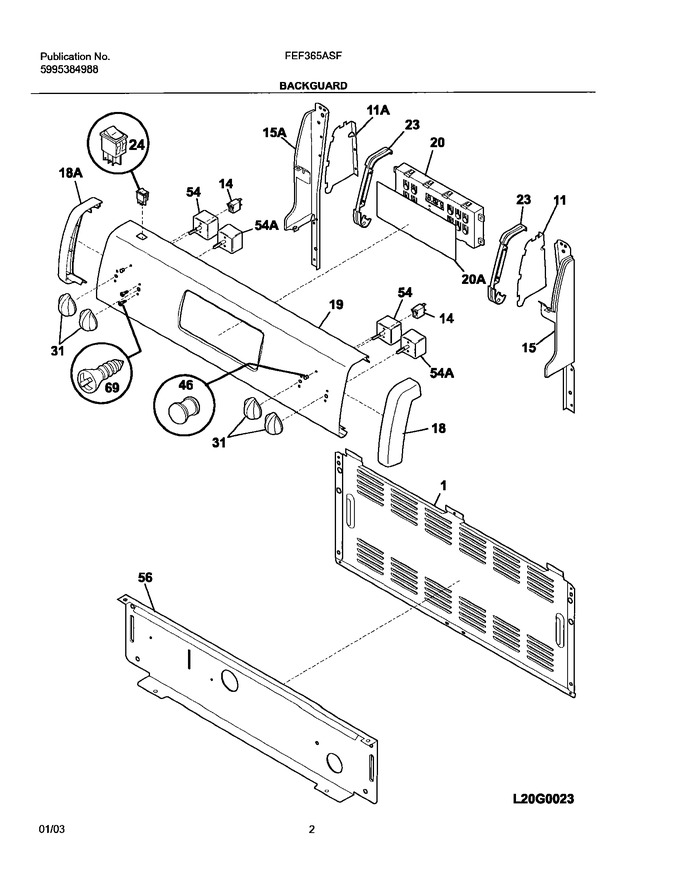

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
11	316241000		Shield,end Cap ,rh		Appelez-nous	-
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316220214		Support,backguard ,white ,rh		Appelez-nous	-
18	316240900		End Cap,white ,rh				$ 49.09
19	316244495		Panel,backguard ,white		Appelez-nous	-
23	316245900		Bracket,clock Mtg		Appelez-nous	-
24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316246000)			Immediately	$ 16.13
31	316223000		Knob,control ,white			Immediately	$ 72.80
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316234001		Shield,backguard ,white ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
11A	A2563116G		Shield,end Cap ,lh   (Replaces: 316241001)		Appelez-nous	-
15A	316220215		Support,backguard ,white ,lh				$ 86.05
18A	316240901		End Cap,white ,lh				$ 45.62
20A	316220800		Overlay,clock ,white		Appelez-nous	-
F20	316207505		Clock/timer,electronic		Appelez-nous	-
F54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
